Outdoor Waterproof 4G Antenna DB-A0702-4G

» 4G LTE Antenna » Outdoor Waterproof 4G Antenna DB-A0702-4G
Outdoor Waterproof 4G Antenna DB-A0702-4G
  • Outdoor Waterproof 4G Antenna DB-A0702-4G
  • Outdoor Waterproof 4G Antenna DB-A0702-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, Products

    Type: Outdoor 4G antenna, waterproof antenna, N connector antenna

    Part Number: DB-A0702-4G

    Freq Range: 700-960/1710-2700MHz

    Gain: 3-5dBi

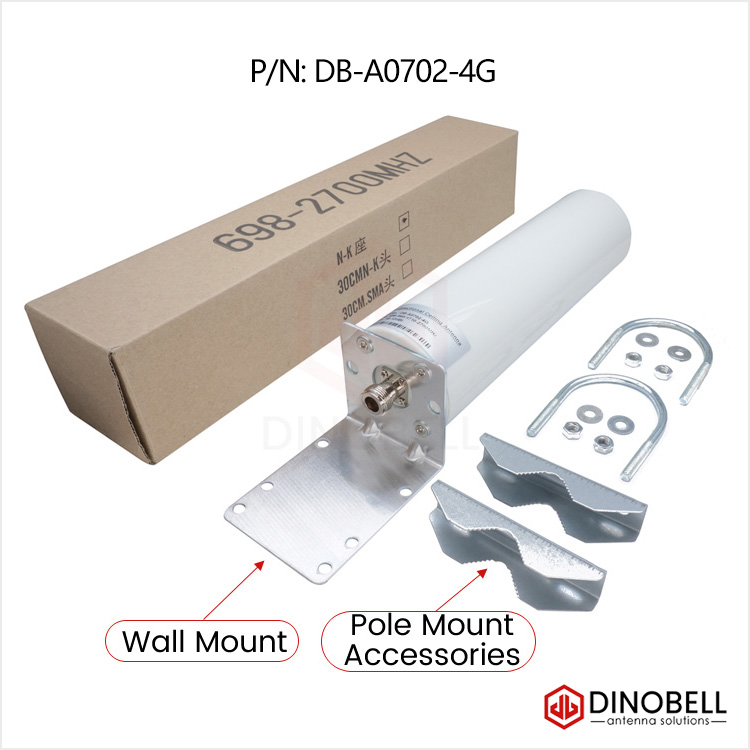

    Mounting Method: Pole Mounting or Wall Mounting

    Antenna Sizes: 63mm(Diam)*230mm(Height)

    Application: 2G 3G 4G antenna,  LTE,  outdoor waterproof.

    enquiry
    • Specifications

    Type:  2G 3G 4G Antenna, Outdoor 4G Antenna, LTE Antenna



    Part Number: DB-A0702-4G
    Freq Range: 700-960/1710-2700MHz
    Gain: 3-5dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 50 W
    Antenna Sizes: 63mm(Diam)*230mm(Height)
    Mounting Method:  Pole Mounting / Wall Mounting
    Coaxial Cable Type:   – / RG58 optional
    Cable Length : 50cm/1 meter/…
    Connector Type: N Female / Cable with SMA
