2G GSM Antenna Magnetic Base DB-A0306-2G

» 2G 3G Antenna » 2G GSM Antenna Magnetic Base DB-A0306-2G

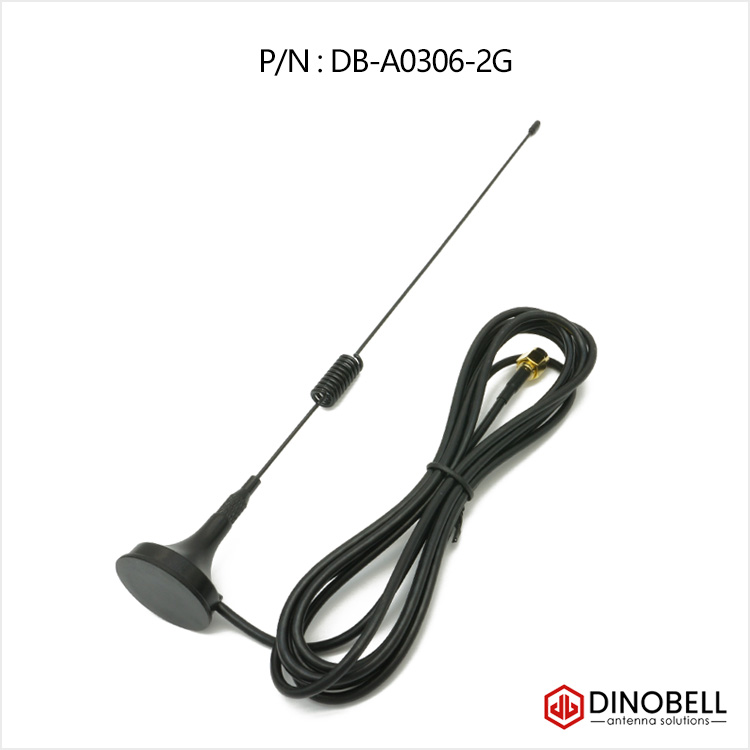

2G GSM Antenna Magnetic Base DB-A0306-2G
  • 2G GSM Antenna Magnetic Base DB-A0306-2G
  • 2G GSM Antenna Magnetic Base DB-A0306-2G

    CATEGORY AND TAGS:
    2G 3G Antenna, Magnetic Mount Antenna, Products

    Type: 2G Antenna, GSM Antenna,  Magnetic base antenna

    Part Number: DB-A0306-2G

    Freq Range: 700-960/1710-1900MHz

    Gain: 3-5dBi

    Antenna Height: 200mm

    Magnetic base : Diam 30mm

    enquiry
    • Specifications

    Type: GSM Antenna, 2G Antenna,  Magnetic base antenna



    Part Number: DB-A0306-2G
    Freq Range: 700-960/1710-1900MHz
    Center Freq:
    Gain: 3-5dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 25 W
    Antenna Height: 200mm
    Base Diameter: 30mm
    Mounting Method: Magnetic
    Coaxial Cable Type: RG174, RG316, RG58 optional
    Cable Length : 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter  optional
    Connector Type: SMA-male, RP-SMA-male, MCX  ,MMCX , N,  M, F   optional
