433MHz Antenna DB-FG20120-433M

» LoRa Antenna » 433MHz Antenna » 433MHz Antenna DB-FG20120-433M
433MHz Antenna DB-FG20120-433M
  • 433MHz Antenna DB-FG20120-433M
  • 433MHz Antenna DB-FG20120-433M
  • 433MHz Antenna DB-FG20120-433M

    CATEGORY AND TAGS:
    433MHz Antenna, Fiberglass Antenna, LoRa Antenna, Products

    Type: 433mhz LoRa Fiberglass Antenna Outdoor Waterproof High Gain

    Part Number: DB-FG20120-433M

    Freq Range: 423-443MHz

    Center Freq: 433MHz

    Gain: 5 dBi

    Antenna Length: 120cm

    enquiry
    • Specifications

    433mhz Antenna Outdoor Waterproof  Fiberglass antenna DB-FG20120-433M



    Part Number: DB-FG20120-433M
    Freq Range: 423-443MHz
    Center Freq: 433MHz
    Gain: 5 dBi
    VSWR: <=1.5
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 100 W
    Antenna Dimensions: H120cm*D23mm

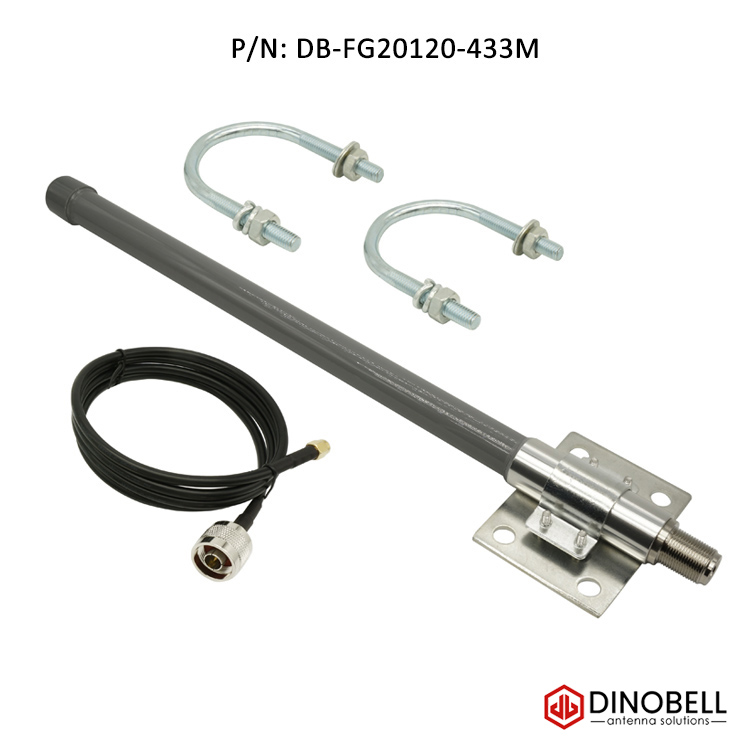

    Mounting Method: Bracket Mount
    Connector Type: N-J, N-K   optional

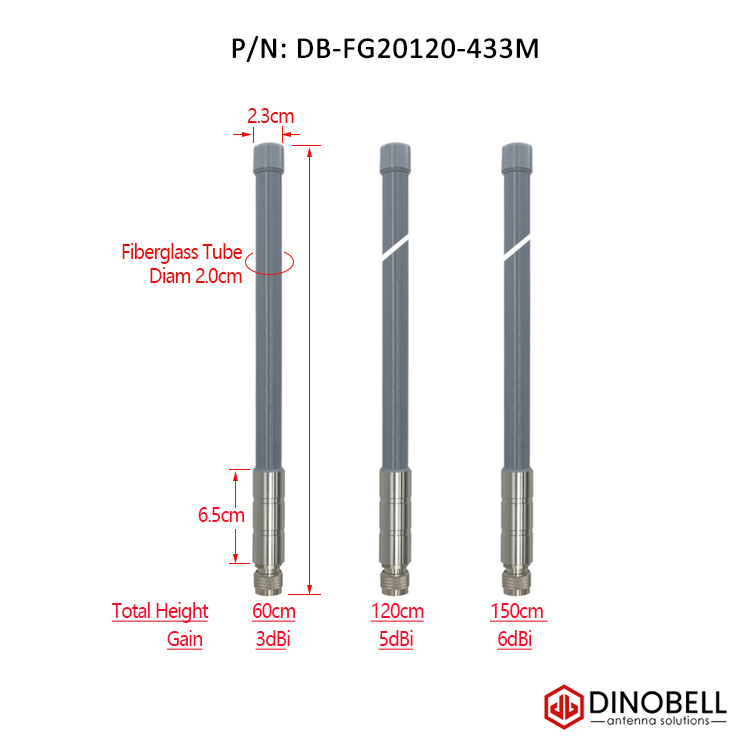

    For Gray Color Fiberglass Tube (White color and Gray Color optional):

    Part Number Antenna Height Gain
    DB-FG2060-433M 60cm 3dBi
    DB-FG20120-433M 120cm 5dBi
    DB-FG20150-433M 150cm 6dBi



    Fiberglass Antenna is the most popular kind of CB antennas, which is also called as Fiberglass Antenna, FRP Antenna. They are fiberglass poles wrapped with copper vibrator and coated with protective material. The antenna shell material is Glass Fiber Reinforced Plastic, and the antenna coil for fiberglass antennas is usually located at the top of the antenna.



    Fiber-glass antenna normally ranges in length from 2′ to 7′, most of them are IP67 waterproof, windproof, high temperature resistance, and corrosion resistance. So, they are also highly durable and long-lasting due to their sturdy construction. They are usually easy to install, and also has good compatibility. Due to its high stability and reliability, fiberglass (FRP) antennas can be widely used in outdoor AP, base station, WIFI coverage of network bridge, car radio, wireless data radio, wireless terminal device, gateway, wireless module, router, intercom and so on.



    As an professional antenna manufacturer, Dinobell provide various Fiberglass antennas, which are all IP67 waterproof omni-directional antennas with low VSWR and high gain, and ranges from 2~12dBi. It contains pure copper oscillator, and all the materials are eco-friendly. These FRP antennas have wide range applications, such as ship marine, transportation infrastructure, electric vehicle, video monitoring, network security, smart building, smart city, etc.
