433MHz Antenna LoRa DB-R195-433M

» LoRa Antenna » 433MHz Antenna » 433MHz Antenna LoRa DB-R195-433M

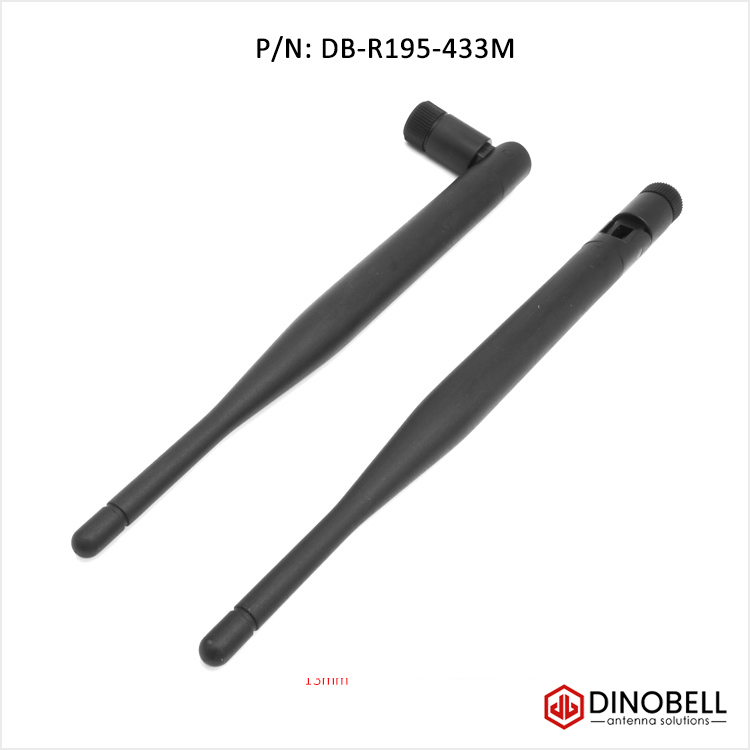

433MHz Antenna LoRa DB-R195-433M
  • 433MHz Antenna LoRa DB-R195-433M

    • 433MHz Antenna LoRa DB-R195-433M

    CATEGORY AND TAGS:
    433MHz Antenna, LoRa Antenna, Products, Rubber Antenna

    Type: 433MHz Antenna Rubber Duck  LoRa Antenna

    Part Number: DB-R195-433M

    Freq Range: 420-448MHz

    Center Freq: 443MHz

    Gain: 3dBi

    enquiry
    • Specifications

    Type: 433MHz Antenna LoRa SMA Terminal DB-R195-433M



    Part Number: DB-R195-433M
    Freq Range: 420-448MHz
    Center Freq: 433MHz
    Gain: 3 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 15 W
    Antenna Dimensions: H195mm*D13mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
