470MHz Antenna Flex PCB DB-A7317-470M

» LoRa Antenna » 470MHz Antenna » 470MHz Antenna Flex PCB DB-A7317-470M

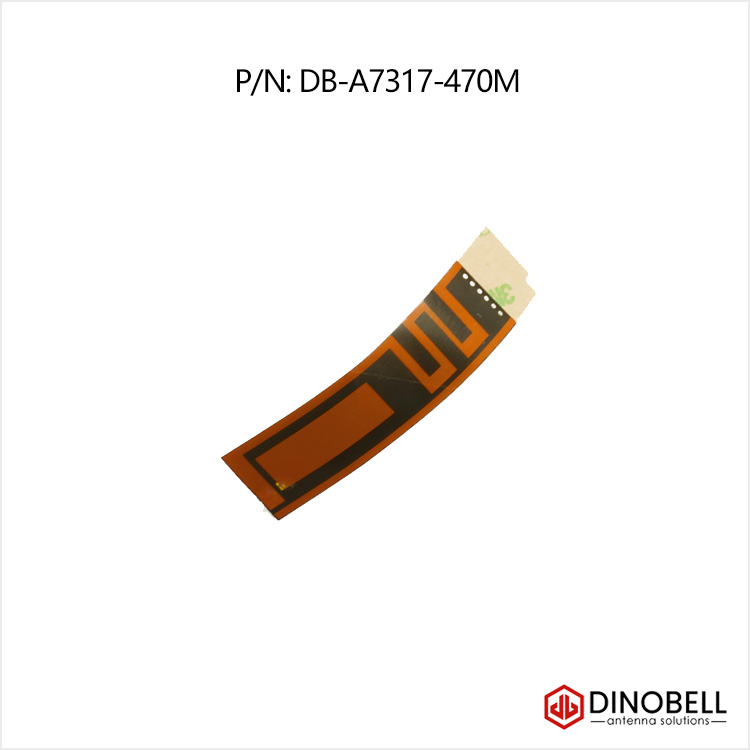

470MHz Antenna Flex PCB DB-A7317-470M
  • 470MHz Antenna Flex PCB DB-A7317-470M

    • 470MHz Antenna Flex PCB DB-A7317-470M

    CATEGORY AND TAGS:
    470MHz Antenna, LoRa Antenna, PCB Antenna, Products

    Type: 470 Antenna , Flex PCB Antenna, LoRa Antenna

    Part Number: DB-A7317-433M

    Freq Range: 490-510MHz

    Gain: 5 dBi

    Application: Embeded 470mhz antenna, LoRa

    enquiry
    • Specifications

    Type:  Flex PCB Antenna, 470MHz  Antenna, LoRa Antenna



    Part Number: DB-A7317-470M
    Freq Range: 470-510MHz
    Gain: 5 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 73*17*0.2mm
    Mounting Method: Adhesive
    Coaxial Cable Type: Diam 1.13mm / RG178
    Cable Length : 5cm/10cm/15cm/30cm/50cm
    Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male
