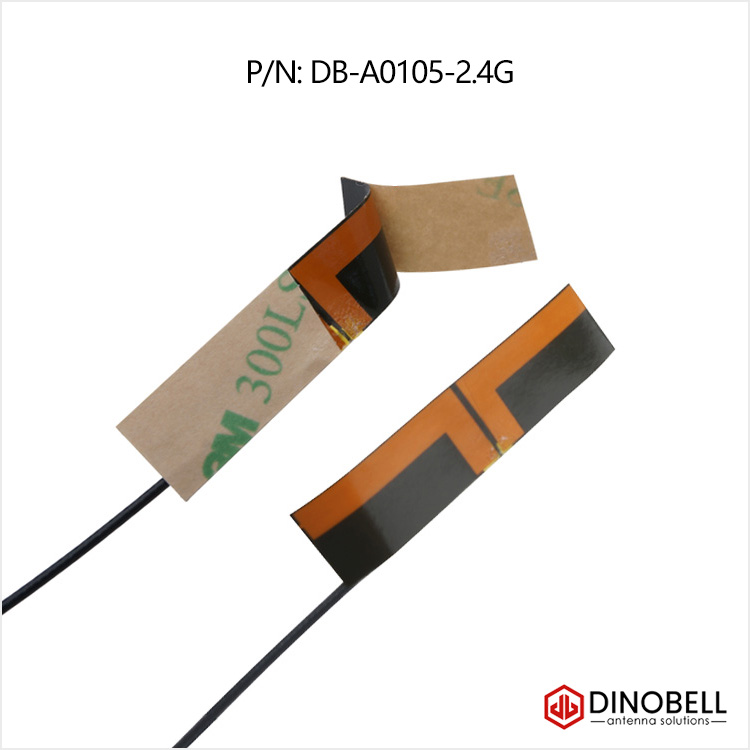

2.4G antenna WiFi PCB DB-A0105-2.4G

» PCB Antenna » 2.4G antenna WiFi PCB DB-A0105-2.4G
2.4G antenna WiFi PCB DB-A0105-2.4G
  • 2.4G antenna WiFi PCB DB-A0105-2.4G

    • 2.4G antenna WiFi PCB DB-A0105-2.4G

    CATEGORY AND TAGS:
    PCB Antenna, Products, WiFi Antenna

    Type: 2.4ghz Antenna, WiFi PCB Antenna, Bluetooth Antenna

    Part Number: DB-A0105-2.4G

    Freq Range: 2400-2500MHz

    Gain: 3dBi

    Application: 2.4G antenna,  WiFi, Bluetooth antenna, Zigbee, Laptop, PC,

    enquiry
    • Specifications

    Type:  2.4G Antenna, WiFi PCB Antenna,, Flex PCB antenna



    Part Number: DB-A0105-2.4G
    Freq Range: 2400-2500MHz
    Gain: 3dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 45*10*0.2mm
    Mounting Method: Adhesive
    Coaxial Cable Type: Diam 1.13mm
    Cable Length : 5cm/10cm/15cm/30cm/50cm
    Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male
