4G Antenna Embedded PCB DB-A6858-4G

» 4G LTE Antenna » 4G Antenna Embedded PCB DB-A6858-4G

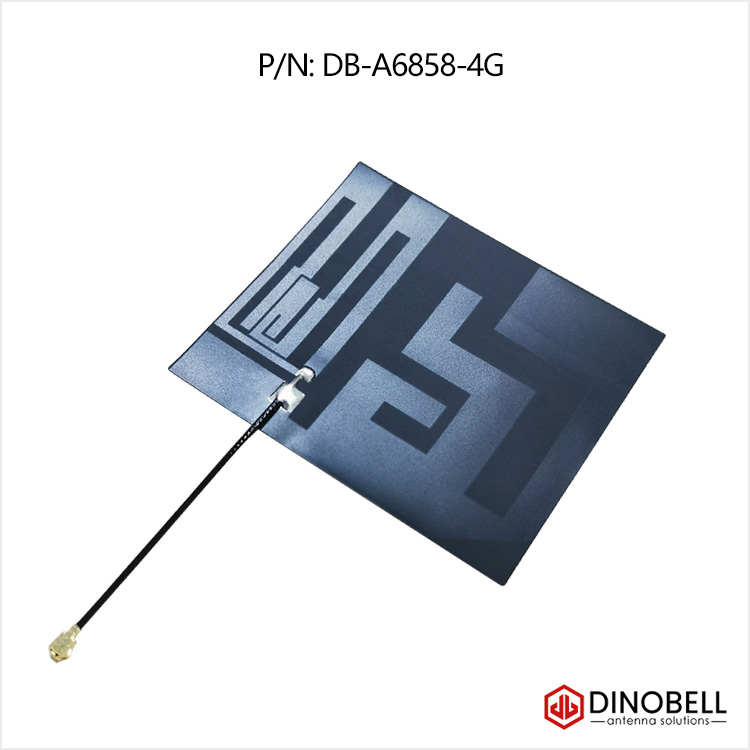

4G Antenna Embedded PCB DB-A6858-4G
  • 4G Antenna Embedded PCB DB-A6858-4G
  • 4G Antenna Embedded PCB DB-A6858-4G
  • 4G Antenna Embedded PCB DB-A6858-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, PCB Antenna, Products

    Type: 4G Antenna , Flex PCB Antenna, Embedded LTE Antenna

    Part Number: DB-A6858-4G

    Freq Range: 700-960MHz/1710-2700MHz

    Gain: 3-5dBi

    Application: Embedded 4G antenna, LTE antenna

    enquiry
    • Specifications

    Type:  Embedded PCB Antenna, 4G Antenna, 2G 3G 4G Antenna



    Part Number: DB-A6858-4G
    Freq Range: 700-960MHz/1710-2700MHz
    Gain: 3-5dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 68*58*0.2mm

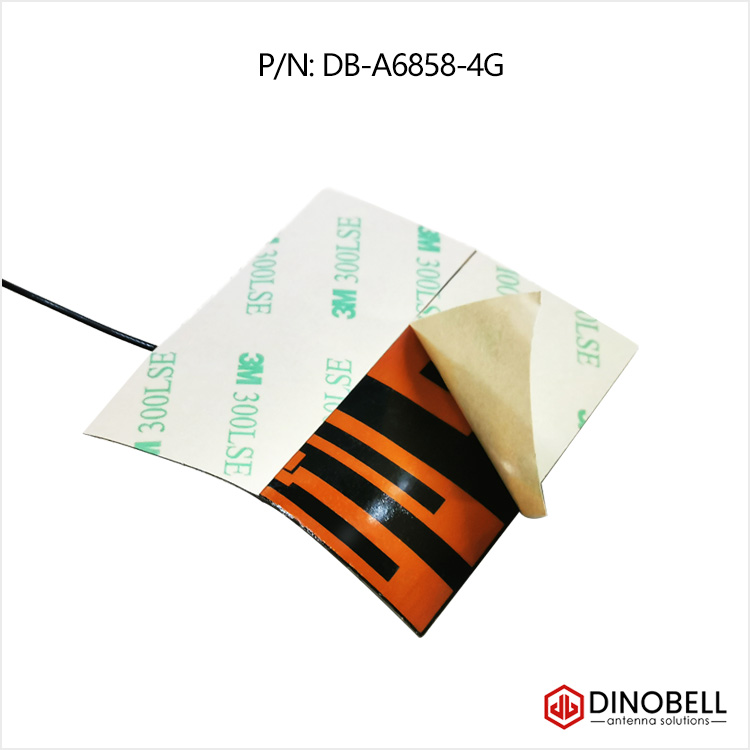

    Mounting Method: Adhesive
    Coaxial Cable Type: Diam 1.13mm / RG178
    Cable Length : 5cm/10cm/15cm/30cm/50cm
    Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male
