WiFi Flex PCB antenna DB-A0104-2.4G&5.8G

» PCB Antenna » WiFi Flex PCB antenna DB-A0104-2.4G&5.8G

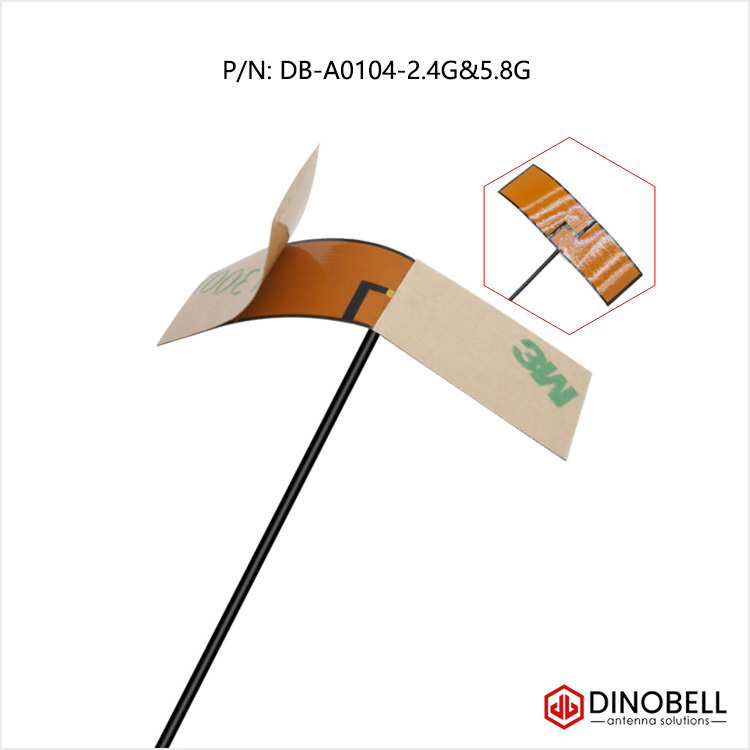

WiFi Flex PCB antenna DB-A0104-2.4G&5.8G
  • WiFi Flex PCB antenna DB-A0104-2.4G&5.8G

    • WiFi Flex PCB antenna DB-A0104-2.4G&5.8G

    CATEGORY AND TAGS:
    PCB Antenna, Products, WiFi Antenna

    Type: Flex PCB Antenna, WiFi Dual Band Antenna, 2.4GHz, 5.8GHz

    Part Number: DB-A0104-2.4G&5.8G

    Freq Range: 2400-2500MHz/5100-5900MHz

    Gain: 3dBi /5 dBi

    Application: 2.4GHz antenna, 5.8GHz antenna, WiFi, Bluetooth, Zigbee

    enquiry
    • Specifications

    Type:  Flex PCB Antenna, WiFi Dual Band Antenna, 2.4GHz, 5.8GHz



    Part Number: DB-A0104-2.4G&5.8G
    Freq Range: 2400-2500MHz/5100-5900MHz
    Gain: 3dBi / 5 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Linear
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Sizes: 42*12*0.1mm
    Mounting Method: Adhesive
    Coaxial Cable Type: Diam 1.13mm / RG178
    Cable Length : 5cm/10cm/15cm/30cm/50cm
    Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male
