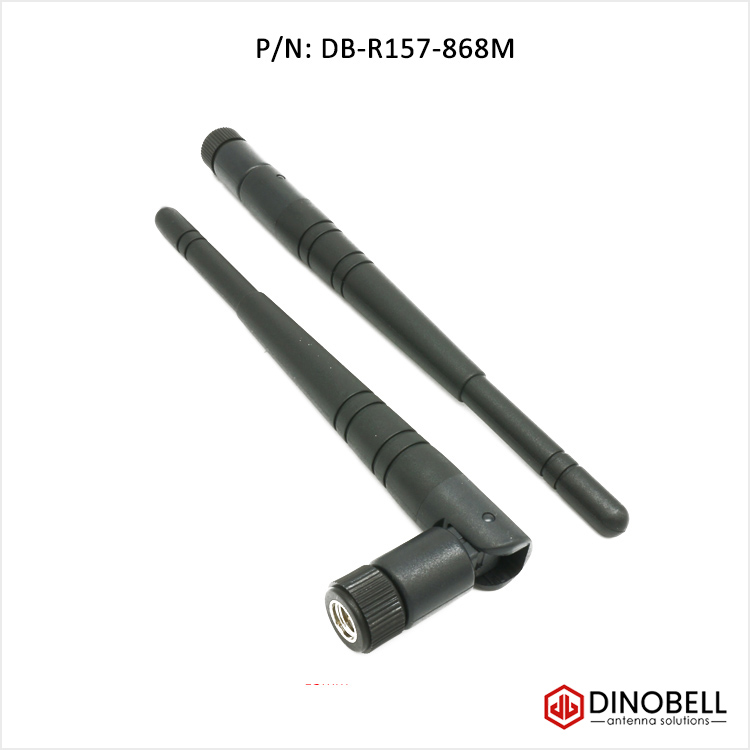

868MHz Lora Antenna DB-R157-868M

» LoRa Antenna » 868MHz Antenna » 868MHz Lora Antenna DB-R157-868M
868MHz Lora Antenna DB-R157-868M
  • 868MHz Lora Antenna DB-R157-868M

    • 868MHz Lora Antenna DB-R157-868M

    CATEGORY AND TAGS:
    868MHz Antenna, LoRa Antenna, Products, Rubber Antenna

    Type :868MHz Lora Antenna, SMA Terminal Rubber Duck Antenna

    Freq Range: 858-878MHz

    Center Freq: 868MHz

    Gain: 3dBi

    Application:  LoRa, 868MHz

    enquiry
    • Specifications

    Type: 868mhz Lora Antenna SMA Terminal DB-R157-868M



    Part Number: DB-R157-868M
    Freq Range: 858-878MHz
    Center Freq: 868MHz
    Gain: 3 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 25 W
    Antenna Dimensions: H157mm*D13mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
