Type: High gain 868mhz Lora Fiberglass Antenna
Part Number: DB-FG20120-868M
Freq Range: 858-878MHz
Center Freq: 868MHz
Gain: 8dBi
Antenna height: 120cm
enquiry868mhz Lora Fiberglass Antenna
| Part Number: | DB-FG20120-868M |
| Freq Range: | 858-878MHz |
| Center Freq: | 868MHz |
| Gain: | 8 dBi |
| VSWR: | <=1.5 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 50 W |

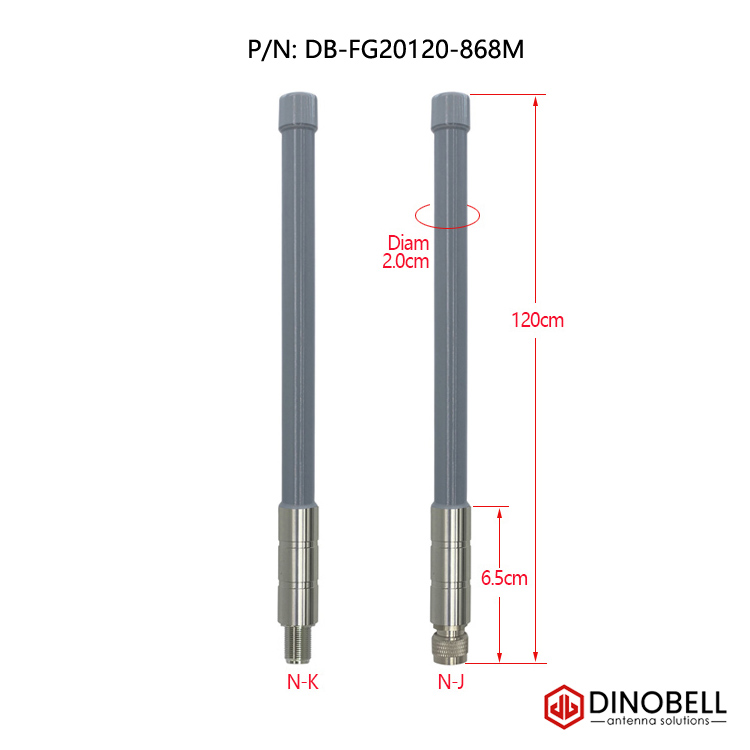

| Antenna Dimensions: | H1200mm*D23mm |

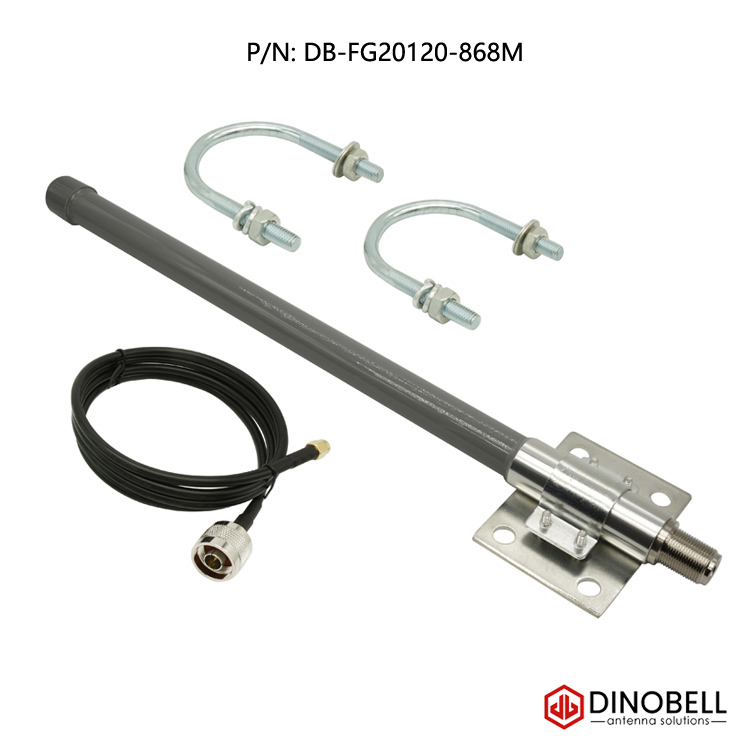

| Mounting Method: | Bracket Mounting |
| Connector Type: | N-J, N-K optional |
| Part Number | Antenna Height | Gain |
| DB-FG2035-868M | 35cm | 3dBi |
| DB-FG2060-868M | 60cm | 5dBi |
| DB-FG2090-868M | 90cm | 6dBi |
| DB-FG20120-868M | 120cm | 8dBi |
| DB-FG20150-868M | 150cm | 10dBi |
| DB-FG20180-868M | 180cm | 12dBi |
Fiberglass Tube Color: Gray and White optional
Fiberglass Antenna is the most popular kind of CB antennas, which is also called as Fiberglass Antenna, FRP Antenna. They are fiberglass poles wrapped with copper vibrator and coated with protective material. The antenna shell material is Glass Fiber Reinforced Plastic, and the antenna coil for fiberglass antennas is usually located at the top of the antenna. and most of them are IP67 waterproof, windproof, high temperature resistance, and corrosion resistance.
