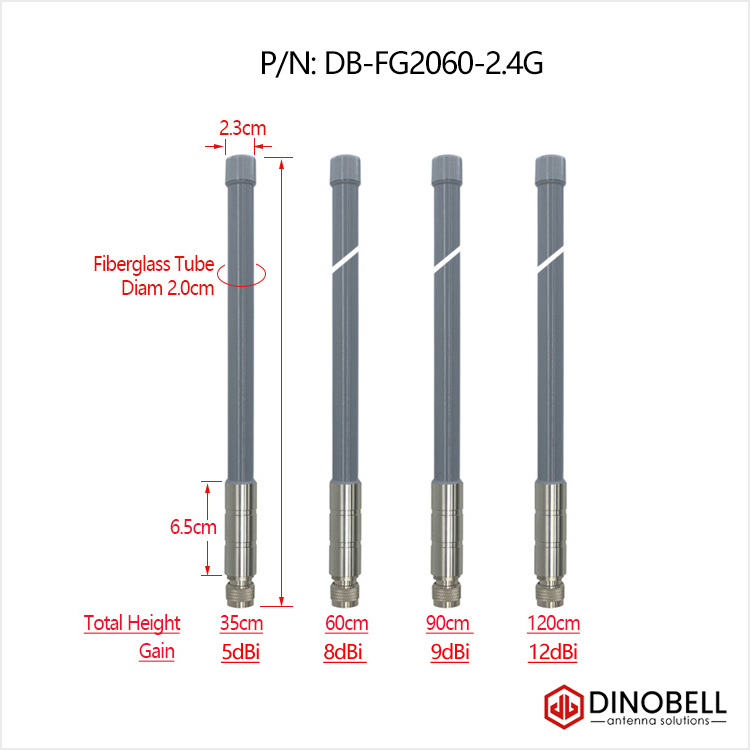

Type: 2.4GHz WiFi Outdoor Fiberglass Antenna
Part Number: DB-FG2060-2.4G
Freq Range: 2400-2500MHz
Center Freq: 2450MHz
Gain: 8dBi
Antenna Length: 60cm
enquiryWiFi Outdoor Fiberglass Antenna 2.4GHz
| Part Number: | DB-FG2060-2.4G |
| Freq Range: | 2400-2500MHz |
| Center Freq: | 2450MHz |
| Gain: | 8 dBi |
| VSWR: | <=1.5 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 50 W |
| Antenna Dimensions: | H60cm*D23mm |
| Mounting Method: | Bracket Mount |
| Connector Type: | N-J, N-K optional |
For Gray Color Fiberglass Tube (White color and Gray Color optional)
Fiberglass Antenna is the most popular kind of CB antennas, which is also called as Fiberglass Antenna, FRP Antenna. They are fiberglass poles wrapped with copper vibrator and coated with protective material. The antenna shell material is Glass Fiber Reinforced Plastic, and the antenna coil for fiberglass antennas is usually located at the top of the antenna.
Fiber-glass antenna normally ranges in length from 2′ to 7′, most of them are IP67 waterproof, windproof, high temperature resistance, and corrosion resistance. So, they are also highly durable and long-lasting due to their sturdy construction. They are usually easy to install, and also has good compatibility. Due to its high stability and reliability, fiberglass (FRP) antennas can be widely used in outdoor AP, base station, WIFI coverage of network bridge, car radio, wireless data radio, wireless terminal device, gateway, wireless module, router, intercom and so on.
