4G LTE Antenna magnetic base DB-A0308-4G

» 4G LTE Antenna » 4G LTE Antenna magnetic base DB-A0308-4G

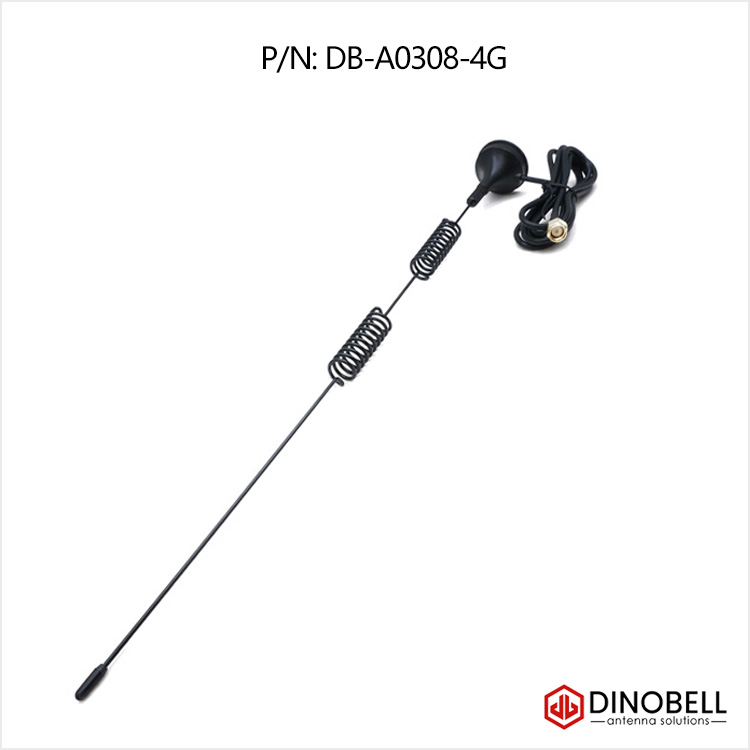

4G LTE Antenna magnetic base DB-A0308-4G
  • 4G LTE Antenna magnetic base DB-A0308-4G
  • 4G LTE Antenna magnetic base DB-A0308-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, Magnetic Mount Antenna, Products

    Type: 4G Antenna, LTE Antenna,  Magnetic base antenna

    Part Number: DB-A0308-4G

    Freq Range: 700-960/1710-2700MHz

    Gain: 5-7dBi

    Antenna Height: 322mm

    Magnetic base : Diam 30mm

    enquiry
    • Specifications

    Type: 4G Antenna, LTE Antenna,  Magnetic base antenna



    Part Number: DB-A0308-4G
    Freq Range: 700-960/1710-2700MHz
    Center Freq:
    Gain: 5-7dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 25 W
    Antenna Height: 322mm
    Base Diameter: 30mm
    Mounting Method: Magnetic
    Coaxial Cable Type: RG174, RG316, RG58 optional
    Cable Length : 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter  optional
    Connector Type: SMA-male, RP-SMA-male, MCX  ,MMCX , N,  M, F   optional
