LoRa Antenna

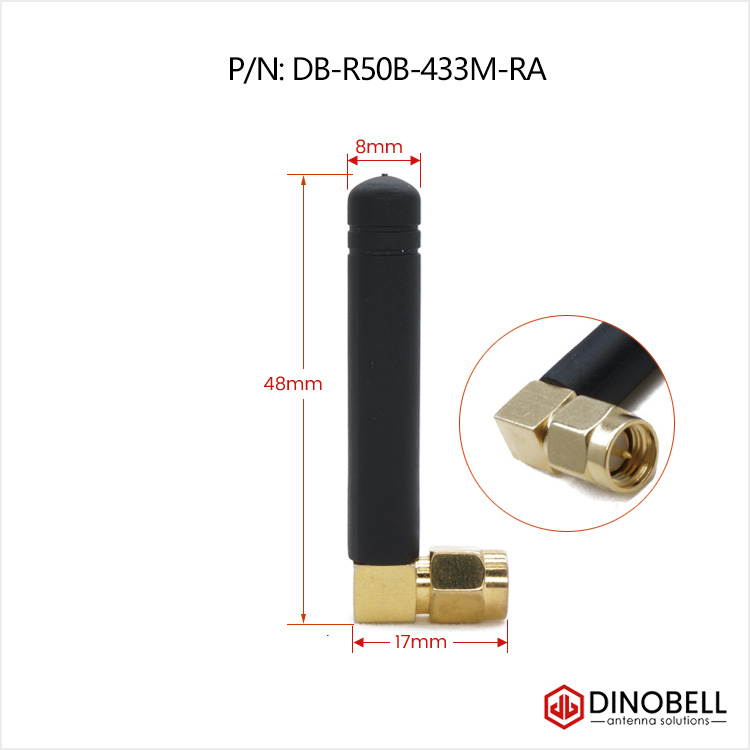

Type: 433MHz LoRa Antenna with Right Angle SMA Terminal DB-R50B-433M-RA   Part Number: DB-R50B-433M-RA Freq Range: 423-443MHz Center Freq: 433MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 5 W Antenna Dimensions: H48mm Mounting Method: SMA Right Angle Version Connector Type: SMA-male, RP-SMA-male

Type: 433MHz Antenna, LoRa Antenna,  433M antenna   Part Number: DB-MM165-433M/RG58 Freq Range: 420-450MHz Center Freq: 433MHz Gain: 5dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 165mm Base Diameter: 45mm Mounting Method: Magnetic Coaxial Cable Type: RG58 Cable Length : 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, …

Type: 433MHz LoRa Antenna,  433 mhz antenna   Part Number: DB-MS143-433M/RG316 Freq Range: 420-450MHz Center Freq: 433MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 143mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG316 Cable Length : 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, …

Type: 433MHz  Antenna, LoRa Antenna,  433 mhz antenna   Part Number: DB-MS163-433M/RG316 Freq Range: 420-450MHz Center Freq: 433MHz Gain: 5dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 163mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG316 Cable Length : 1 meter, 1.5 meter, 2 meter, 3 meter, 5 …

Type:  4G Antenna,  Outdoor Waterproof through hole Mounting Antenna   Part Number: DB-A0503-433M Freq Range: 430-440MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 20mm(Diam)*73mm(Height) Mounting Method:  Screw Mounting -M12 Coaxial Cable Type: RG178/RG174/RG316 Cable Length : 15cm/30cm/50cm/1meter/… Connector Type: IPEX /SMA/SMB/MCX/…

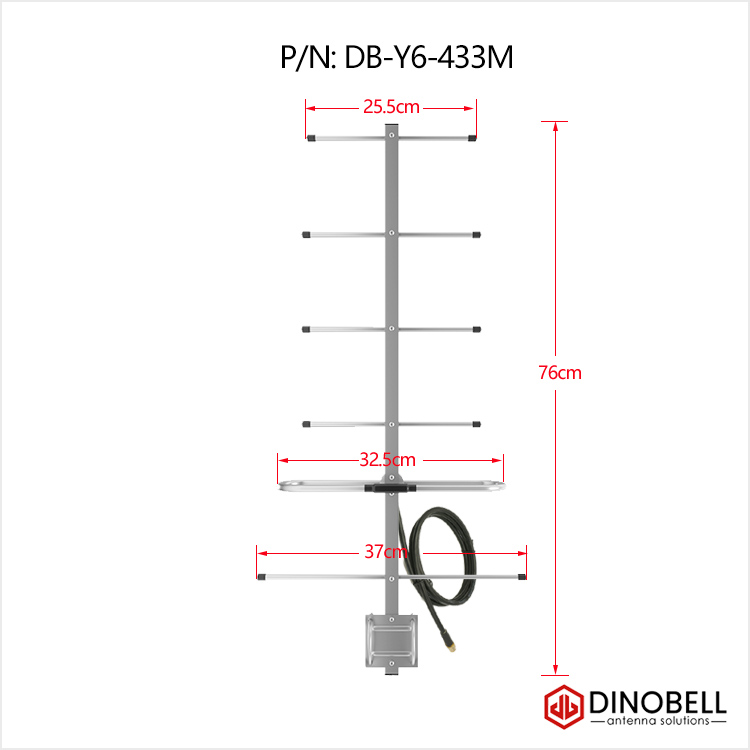

Part Number: DB-Y6-433M Freq Range: 423-443MHz Center Freq: 433MHz Gain: 9 dBi VSWR: <1.5 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Directional Max. Input Power: 100 W Antenna Sizes: 76cm*37cm Antenna Type: Yagi Antenna Mounting Method: U Bracket Coaxial Cable Type: RG58 Cable Length :  1 meter,   2 meter, 3 meter optional Connector Type: SMA-male,  N-K, N-J  optional

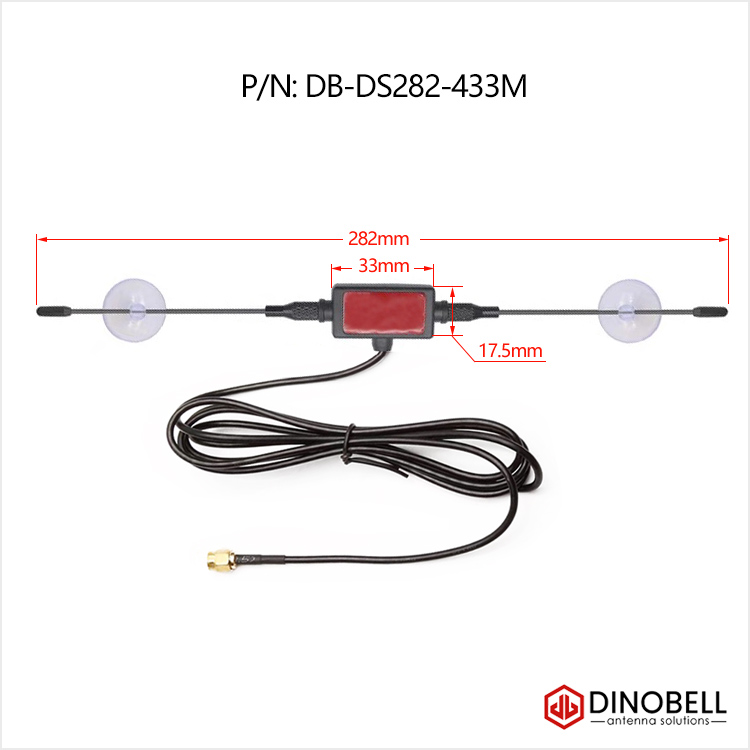

Part Number: DB-DS282-433M Freq Range: 423-443MHz Center Freq: 433MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Sizes: 282mm Length Antenna Type: Dipole Antenna Mounting Method: Sticker Coaxial Cable Type: RG174, RG316, optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter  …

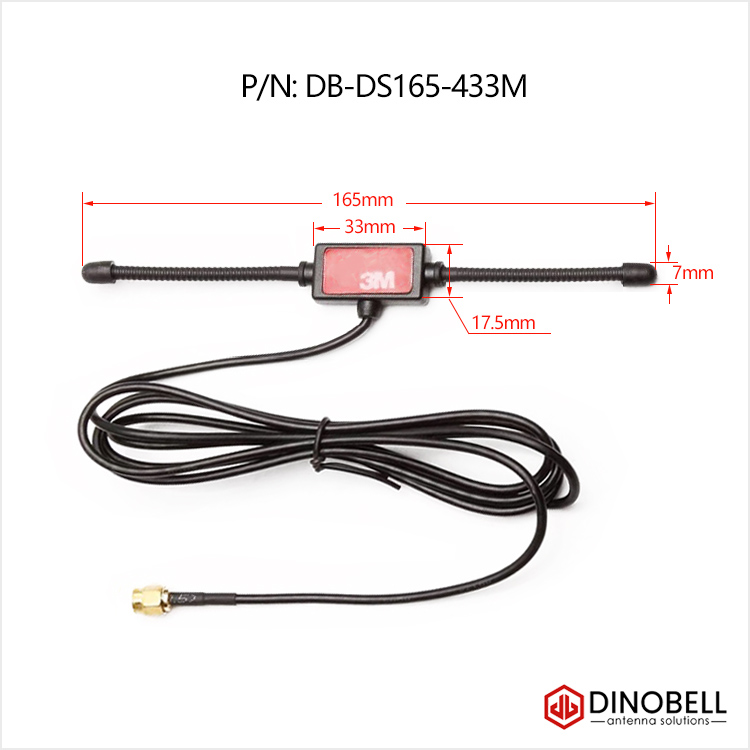

Part Number: DB-DS165-433M Freq Range: 423-443MHz Center Freq: 433MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Sizes: 165mm Length Antenna Type: Dipole Antenna Mounting Method: Sticker Coaxial Cable Type: RG174, RG316, optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter  …

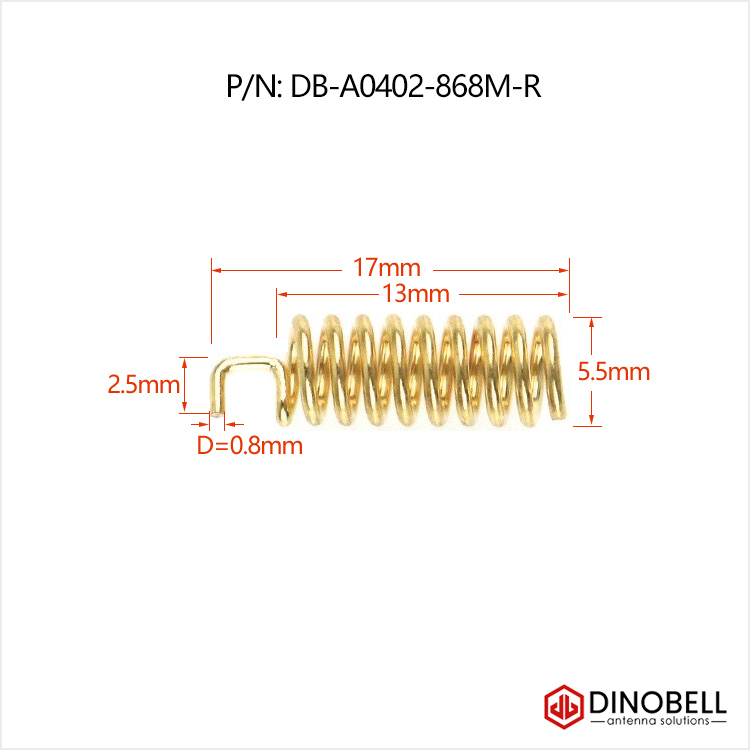

Type:  Antenna Loading Coil , 868mhz Coil Antenna, 868mhz helical spring antenna   Part Number: DB-A0402-868M-R Freq Range: 868MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 5 W Copper Wire Diam 0.8mm Coil Dimensions: 17mm*5.5mm Mounting Type: PCB Welding

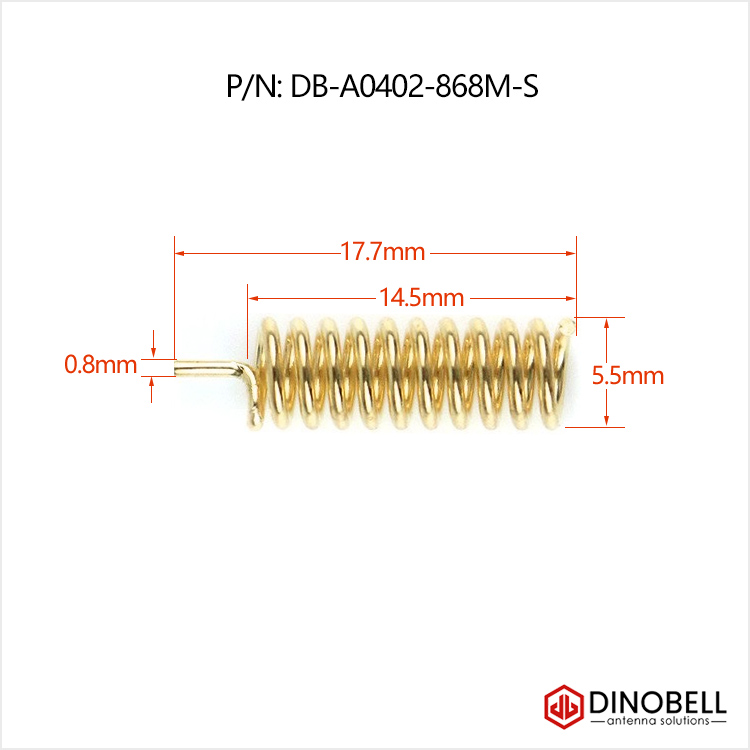

Type:  Helical Coil Antenna, 868mhz Antenna, 868 mhz helical antenna   Part Number: DB-A0402-868M-S Freq Range: 868MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 5 W Copper Wire Diam 0.8mm Coil Dimensions: 17.7mm*5.5mm Mounting Type: PCB Welding

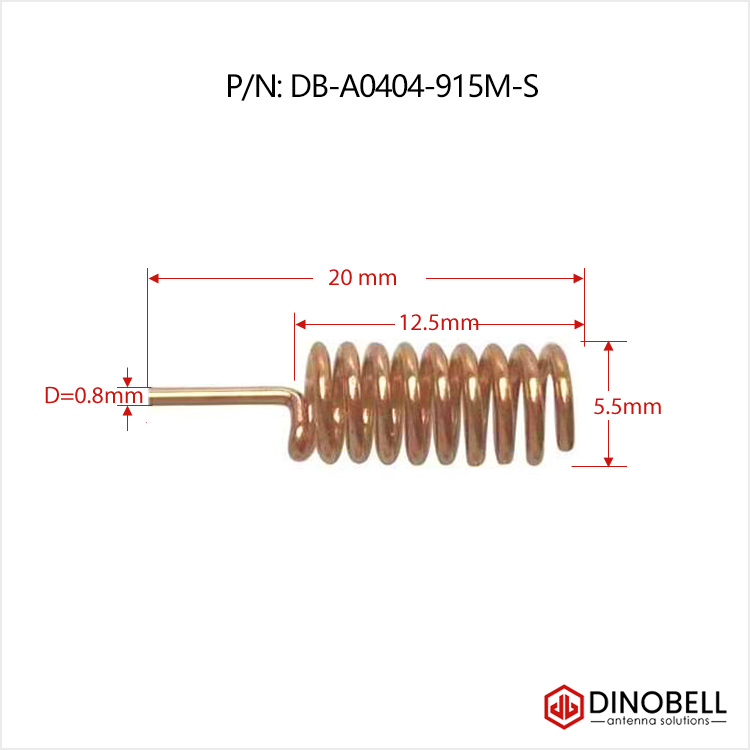

Type:  spring Antenna, 915mhz Antenna, 915mhz coil antenna   Part Number: DB-A0404-915M-S Freq Range: 915MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 10 W Copper Wire Diam 0.8mm Coil Dimensions: 20mm*5.5mm Mounting Type: PCB Welding

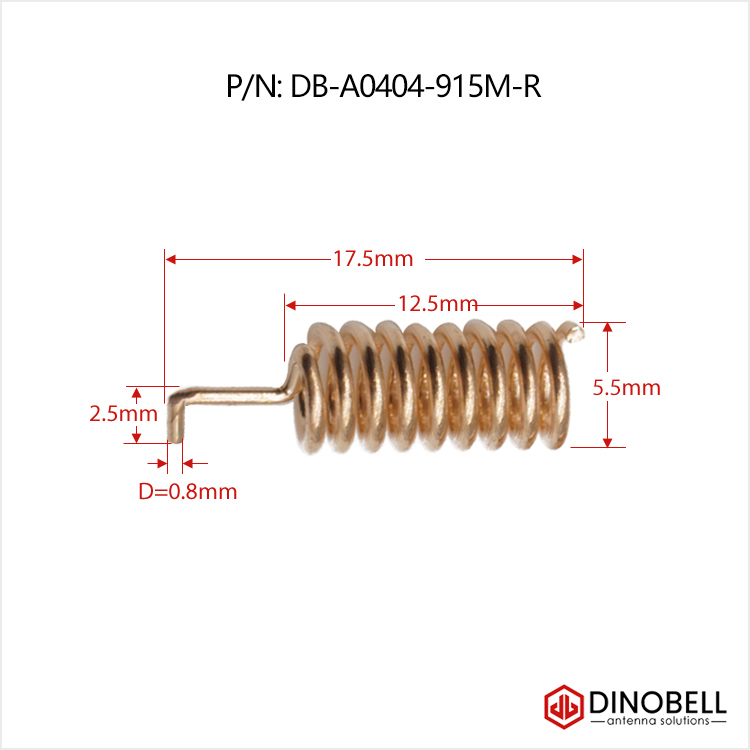

Type:  spring Antenna, 915mhz Antenna, 915mhz coil antenna   Part Number: DB-A0404-915M-R Freq Range: 915MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 10 W Copper Wire Diam 0.8mm Coil Dimensions: 12.5mm*5.5mm Mounting Type: PCB Welding

Type:  spring Antenna, 433mhz Antenna, 433mhz coil antenna   Part Number: DB-A0401-433M-S Freq Range: 433MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 10 W Copper Wire Diam 0.6mm Coil Dimensions:  33mm*5mm Mounting Type: PCB Welding

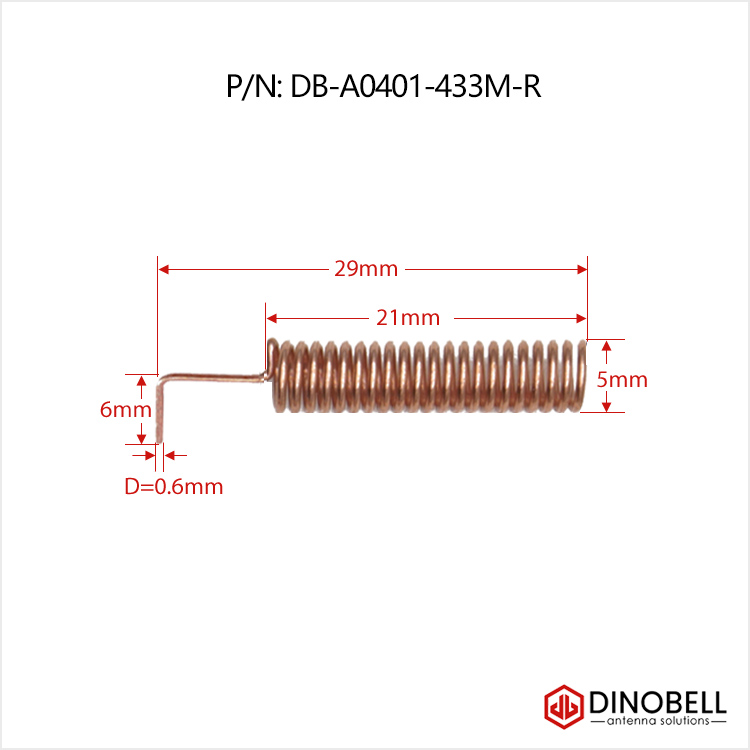

Type:  spring Antenna, 433mhz Antenna, 433mhz coil antenna   Part Number: DB-A0401-433M-R Freq Range: 433MHz Gain: 2.15dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 10 W Copper Wire Diam 0.6mm Coil Dimensions:  29mm*5mm Mounting Type: PCB Welding

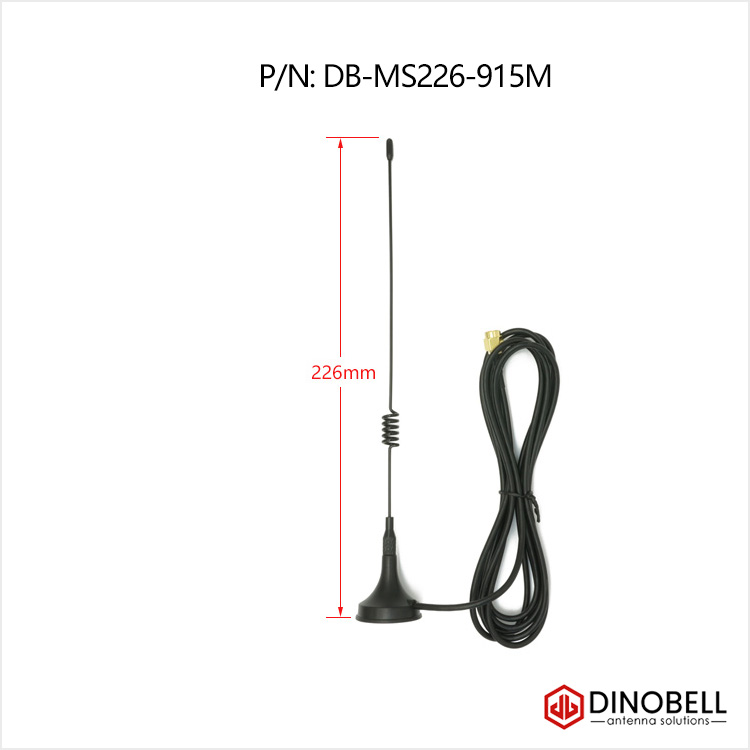

915MHz  Omni Lora Antenna  DB-MS226-915M   Part Number: DB-MS226-915M Freq Range: 900-930MHz Center Freq: 915MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 226mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316 optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 …

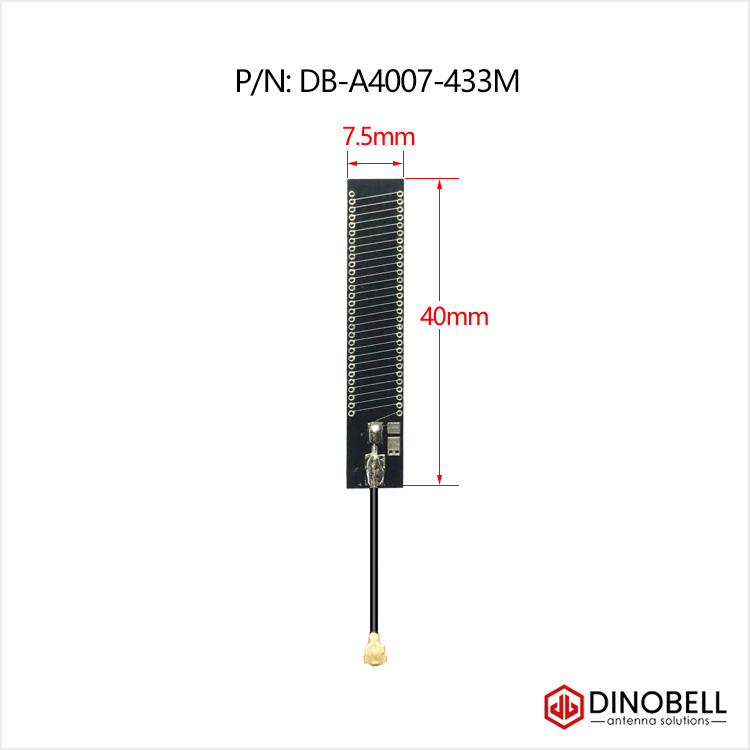

Type:  PCB Antenna, 433 MHz Antenna, LoRa Antenna   Part Number: DB-A4007-433M Freq Range: 423-443MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 40*7.5*1.0mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

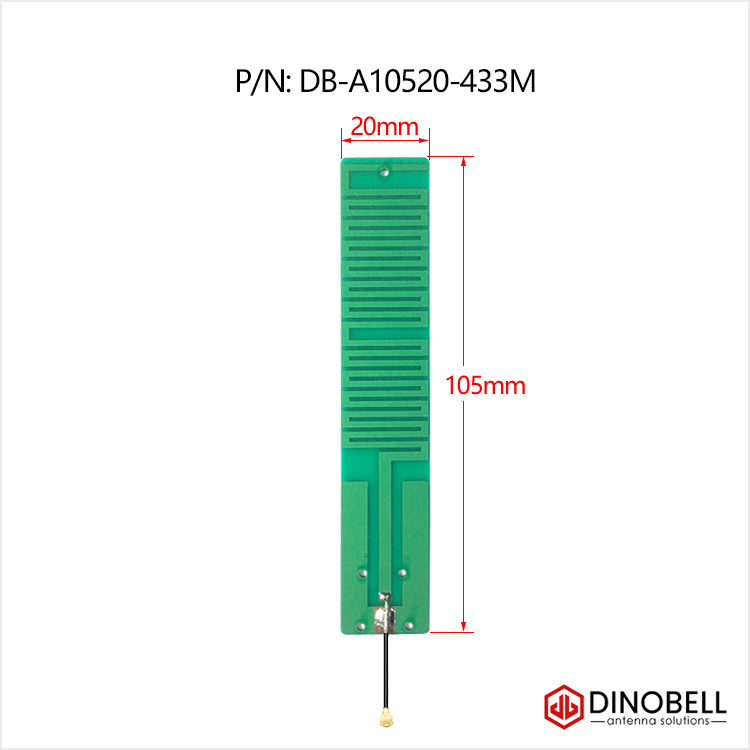

Type:  PCB Antenna, 433MHz Antenna, LoRa Antenna   Part Number: DB-A10520-433M Freq Range: 423-443MHz Gain: 5 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 105*20*1.2mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

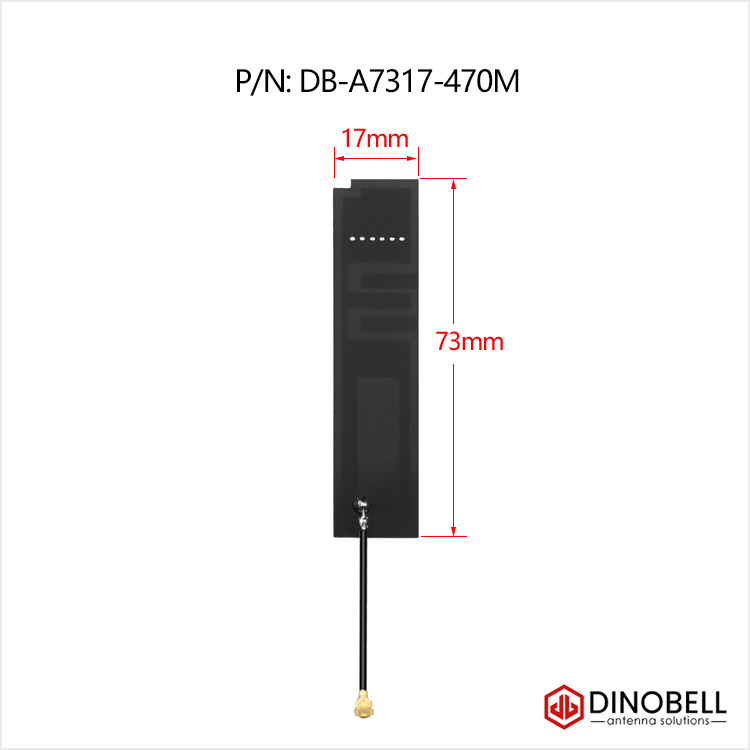

Type:  Flex PCB Antenna, 470MHz  Antenna, LoRa Antenna   Part Number: DB-A7317-470M Freq Range: 470-510MHz Gain: 5 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 73*17*0.2mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

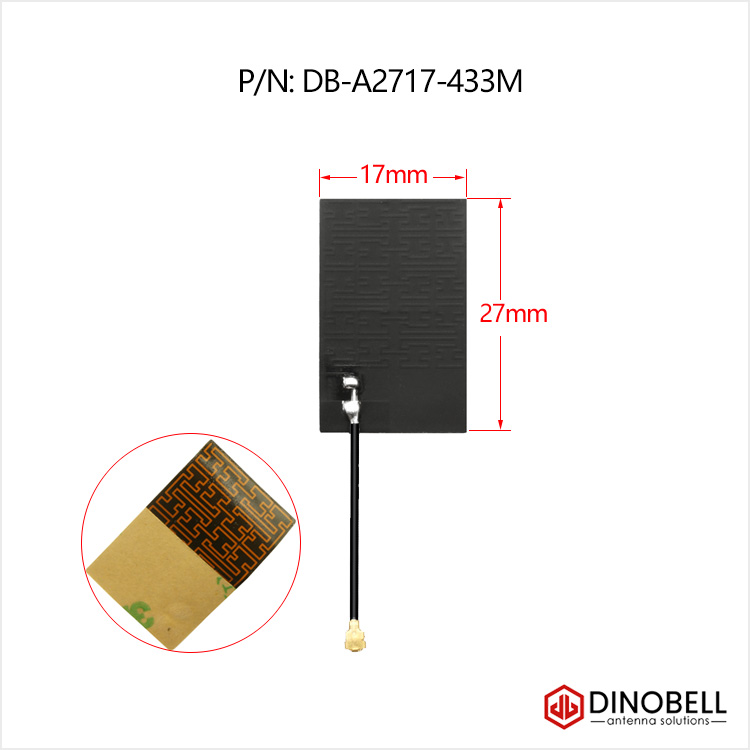

Type:  Flex PCB Antenna, 433MHz  Antenna, LoRa Antenna   Part Number: DB-A2717-433M Freq Range: 423-443MHz Gain: 5 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 27*17*0.2mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

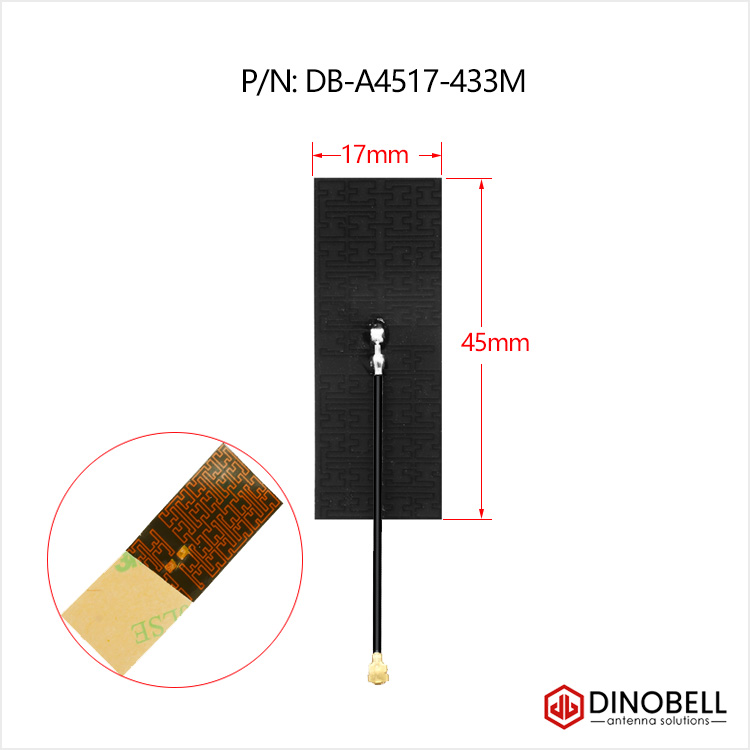

Type:  Flex PCB Antenna, 433MHz  Antenna, LoRa Antenna   Part Number: DB-A4517-433M Freq Range: 423-443MHz Gain: 5 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 45*17*0.2mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

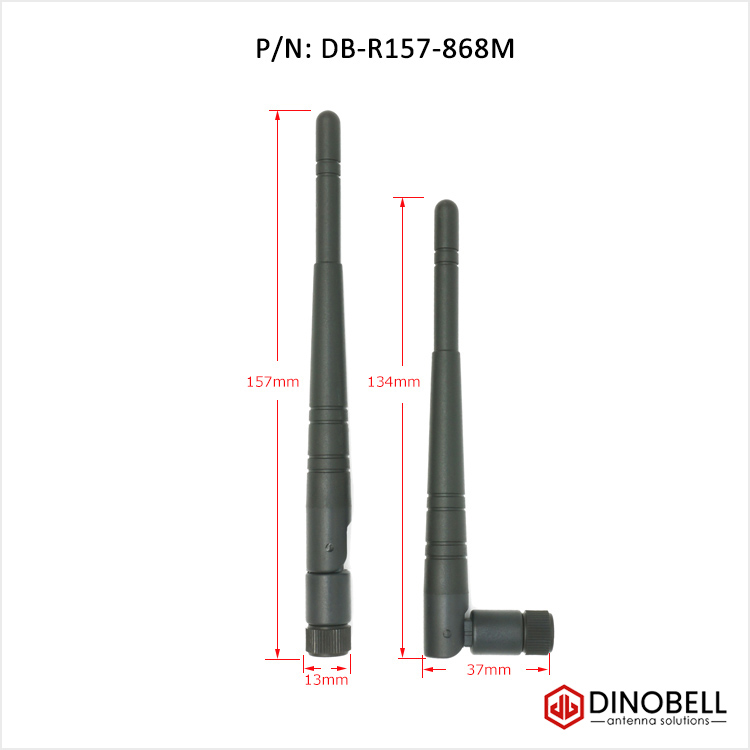

Type: 868mhz Lora Antenna SMA Terminal DB-R157-868M   Part Number: DB-R157-868M Freq Range: 858-878MHz Center Freq: 868MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Dimensions: H157mm*D13mm Mounting Method: SMA Terminal Mount Connector Type: SMA-male, RP-SMA-male   optional

Type: 433MHz Antenna LoRa SMA Terminal DB-R195-433M   Part Number: DB-R195-433M Freq Range: 420-448MHz Center Freq: 433MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 15 W Antenna Dimensions: H195mm*D13mm Mounting Method: SMA Terminal Mount Connector Type: SMA-male, RP-SMA-male   optional

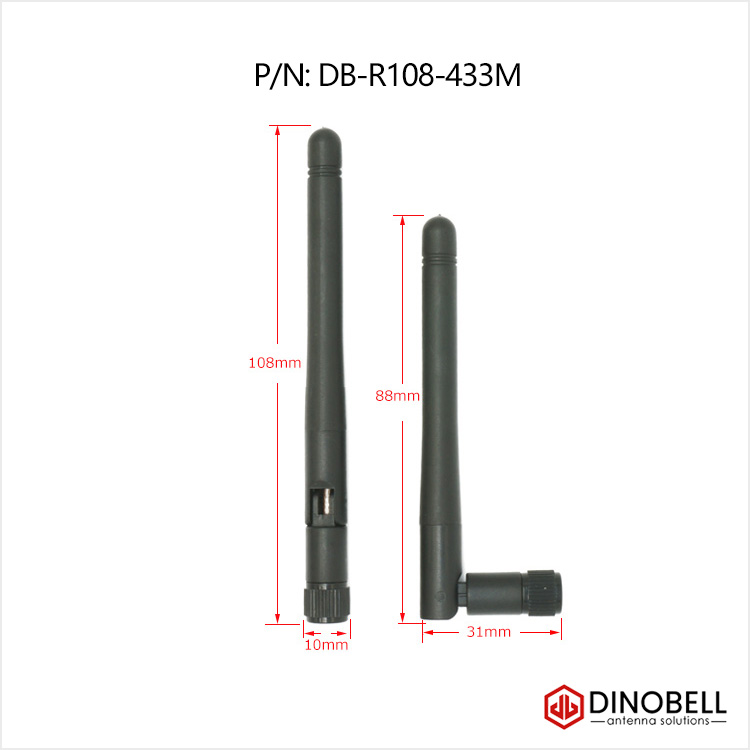

Type: 433MHz Antenna LoRa SMA Terminal DB-R108-433M   Part Number: DB-R108-433M Freq Range: 420-448MHz Center Freq: 433MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 15 W Antenna Dimensions: H108mm*D10mm Mounting Method: SMA Terminal Mount Connector Type: SMA-male, RP-SMA-male   optional

433mhz Antenna Outdoor Waterproof  Fiberglass antenna DB-FG2060-470M   Part Number: DB-FG2060-470M Freq Range: 470-510MHz Center Freq: 490MHz Gain: 3 dBi VSWR: <=1.5 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 100 W Antenna Dimensions: H60cm*D23mm Mounting Method: Bracket Mount Connector Type: N-J, N-K   optional   For Gray Color Fiberglass Tube (White color and Gray Color optional): Part …

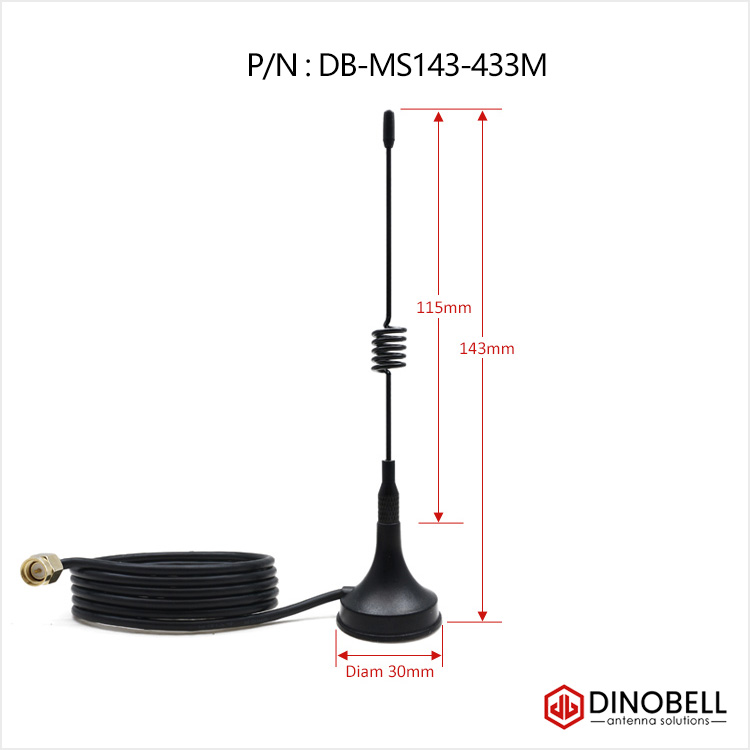

Type: 433MHz  Antenna, LoRa Antenna,  433 mhz antenna   Part Number: DB-MS143-433M Freq Range: 420-450MHz Center Freq: 433MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 143mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316, RG58 optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, …

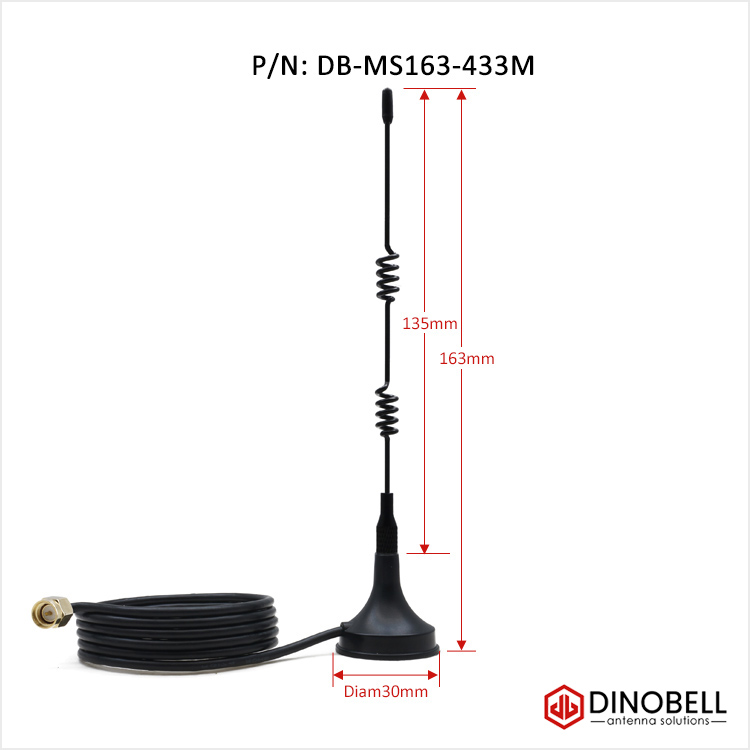

Type: 433MHz  Antenna, LoRa Antenna,  433 mhz antenna   Part Number: DB-MS163-433M Freq Range: 420-450MHz Center Freq: 433MHz Gain: 5dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 163mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316, RG58 optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, …

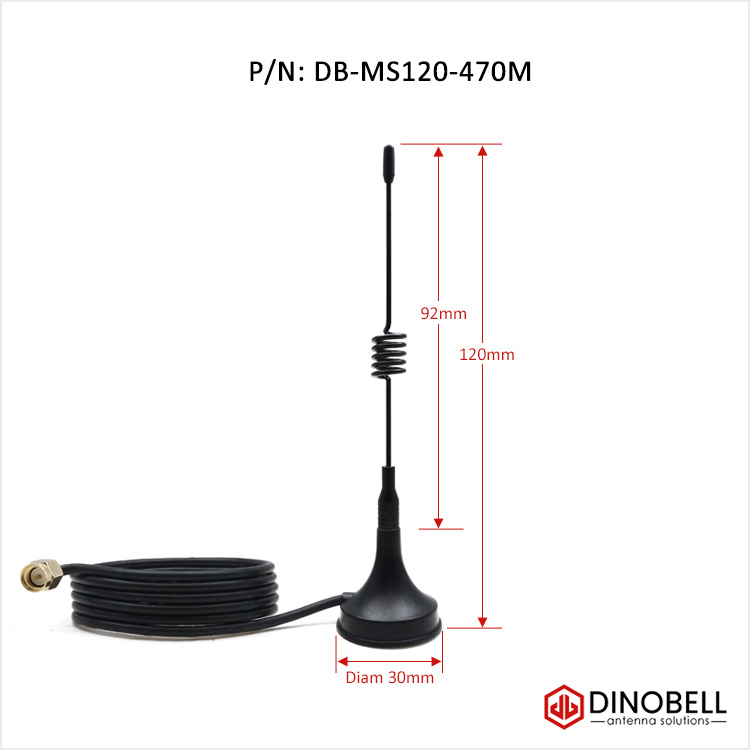

Type: 470MHz  Antenna, LoRa Antenna, 470-510MHz Magnetic base antenna   Part Number: DB-MS120-470M Freq Range: 470-510MHz Center Freq: 490MHz Gain: 3dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 120mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316, RG58 optional Cable Length : 0.5 meter, 1 meter, 1.5 …

Type:  PCB Antenna, 433MHz  Antenna, LoRa Antenna   Part Number: DB-A0117-433M Freq Range: 423-443MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 32*7*0.5mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

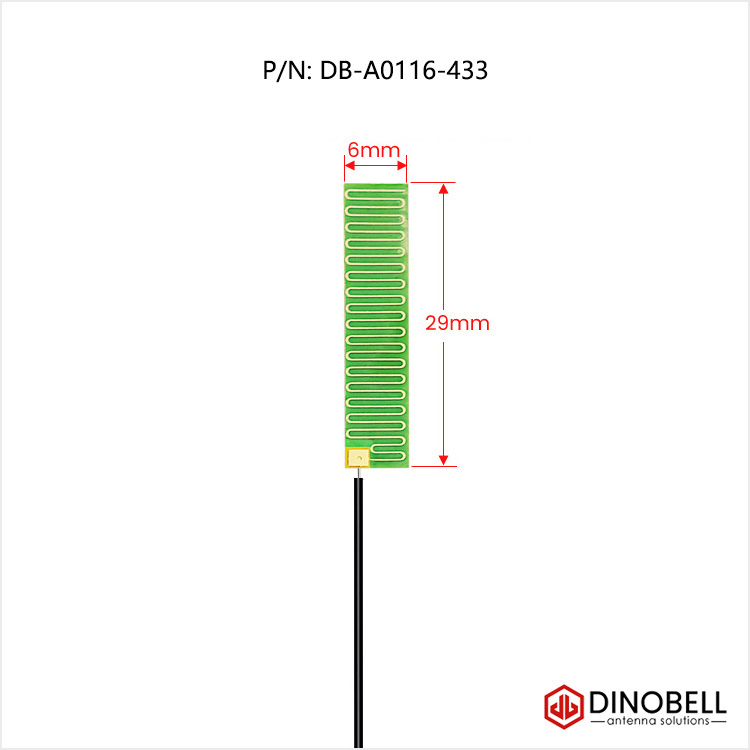

Type:  Flex PCB Antenna, 433MHz  Antenna, LoRa Antenna   Part Number: DB-A0116-433M Freq Range: 423-443MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Linear Radiation Pattern: Omni-Directional Max. Input Power: 10 W Antenna Sizes: 29*6*0.1mm Mounting Method: Adhesive Coaxial Cable Type: Diam 1.13mm / RG178 Cable Length : 5cm/10cm/15cm/30cm/50cm Connector Type: IPEX 1/U.F.L/MHF4/Welding/SMA Male

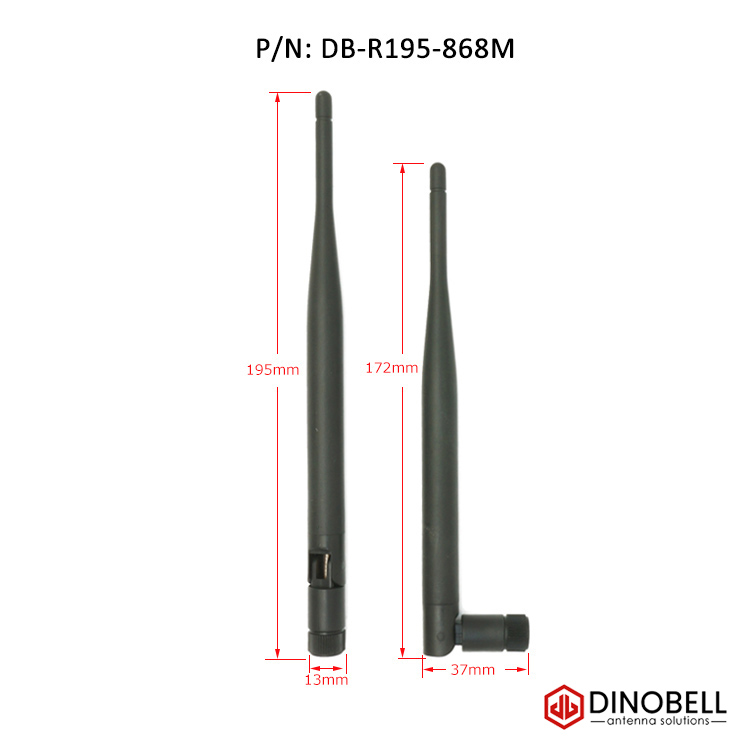

Type: Lora Antenna 868MHz SMA Terminal DB-R195-868M   Part Number: DB-R195-868M Freq Range: 858-878MHz Center Freq: 868MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Dimensions: H195mm*D13mm Mounting Method: SMA Terminal Mount Connector Type: SMA-male, RP-SMA-male   optional

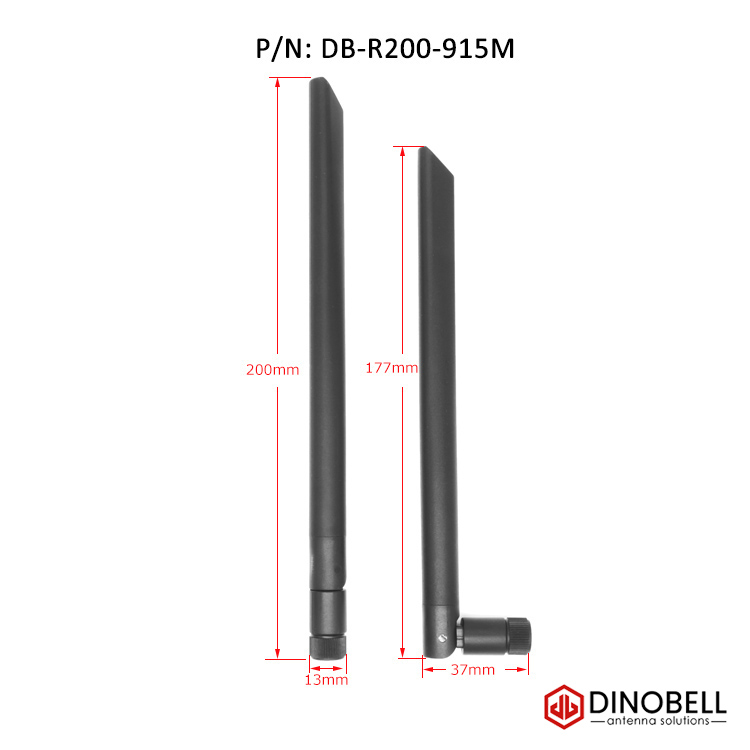

Type: 915MHz Antenna SMA Terminal DB-R200-915M   Part Number: DB-R200-915M Freq Range: 900-930MHz Center Freq: 915MHz Gain: 3 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Dimensions: H200mm*D13mm Mounting Method: SMA Terminal Mount Connector Type: SMA-male, RP-SMA-male   optional

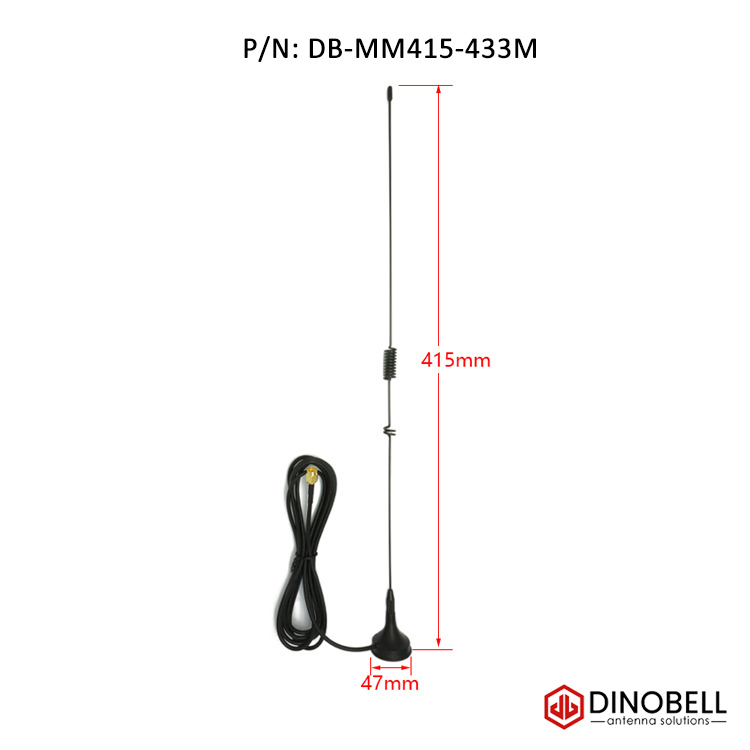

Type: 433MHz  Antenna, LoRa Antenna, 47mm Magnetic base antenna   Part Number: DB-MM415-433M Freq Range: 420-450MHz Center Freq: 433MHz Gain: 6dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 415mm Base Diameter: 47mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316, RG58 optional Cable Length : 0.5 meter, 1 meter, 1.5 …

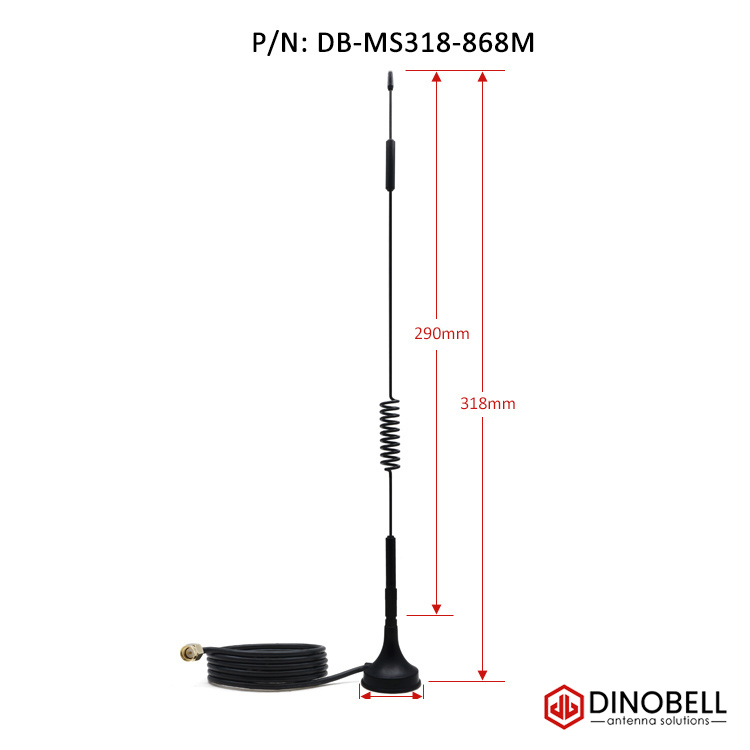

Type:  LoRa Antenna 868MHz Antenna with magnetic base for mounting   Part Number: DB-MS318-868M Freq Range: 850-880MHz Center Freq: 868MHz Gain: 7 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 318mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316 optional Cable Length : 0.5 meter, 1 meter, …

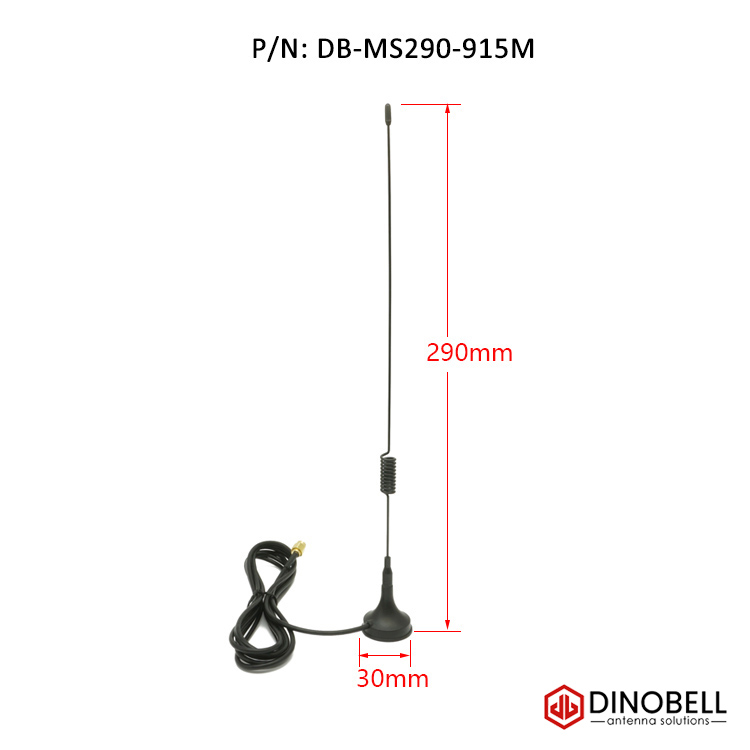

915MHz  Lora Antenna Magnetic Mounting DB-MS290-915M   Part Number: DB-MS290-915M Freq Range: 840-930MHz Center Freq: 868MHz and 915MHz Gain: 5 dBi VSWR: <2.0 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 25 W Antenna Height: 290mm Base Diameter: 30mm Mounting Method: Magnetic Coaxial Cable Type: RG174, RG316 optional Cable Length : 0.5 meter, 1 meter, 1.5 meter, …

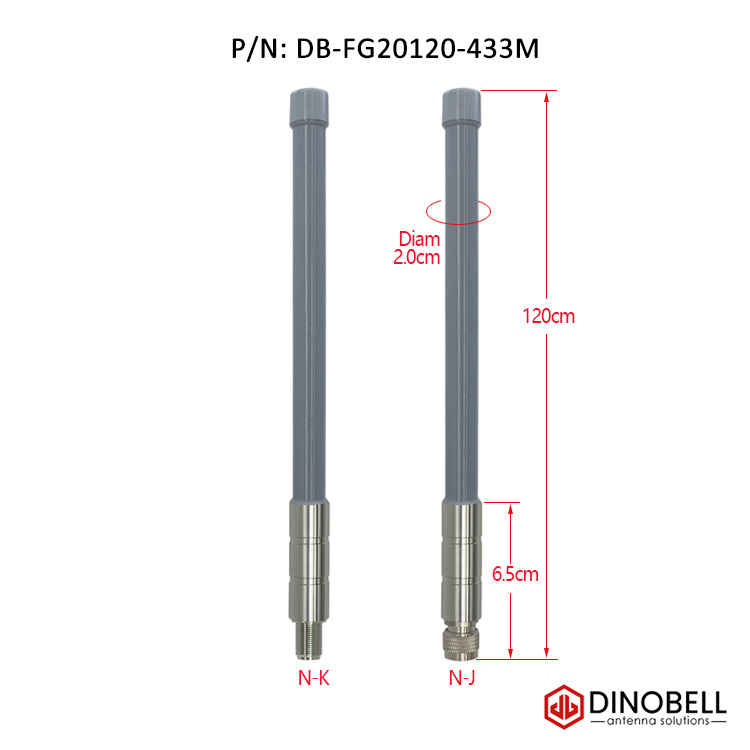

433mhz Antenna Outdoor Waterproof  Fiberglass antenna DB-FG20120-433M   Part Number: DB-FG20120-433M Freq Range: 423-443MHz Center Freq: 433MHz Gain: 5 dBi VSWR: <=1.5 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 100 W Antenna Dimensions: H120cm*D23mm Mounting Method: Bracket Mount Connector Type: N-J, N-K   optional   For Gray Color Fiberglass Tube (White color and Gray Color optional): Part …

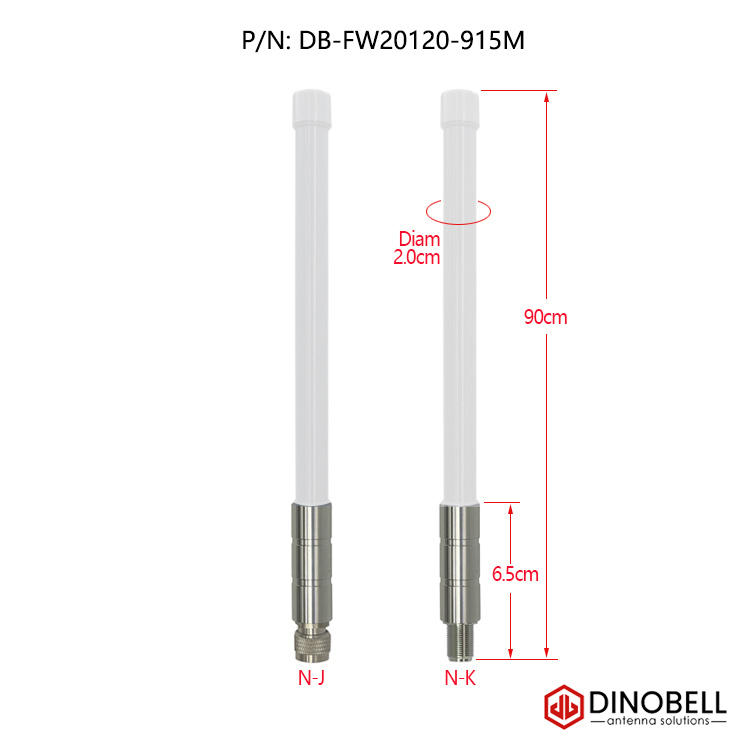

8dBi Fiberglass 915mhz Lora Higain Antenna DB-FW20120-915M Part Number: DB-FW20120-915M Freq Range: 900-930MHz Center Freq: 915MHz Gain:  8 dBi VSWR: <=1.5 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 50 W Antenna Dimensions: H1200mm*D23mm Mounting Method: Bracket Mounting Connector Type: N-J, N-K   optional   For White Color Fiberglass Tube (Gray color and White color optional): Part Number …

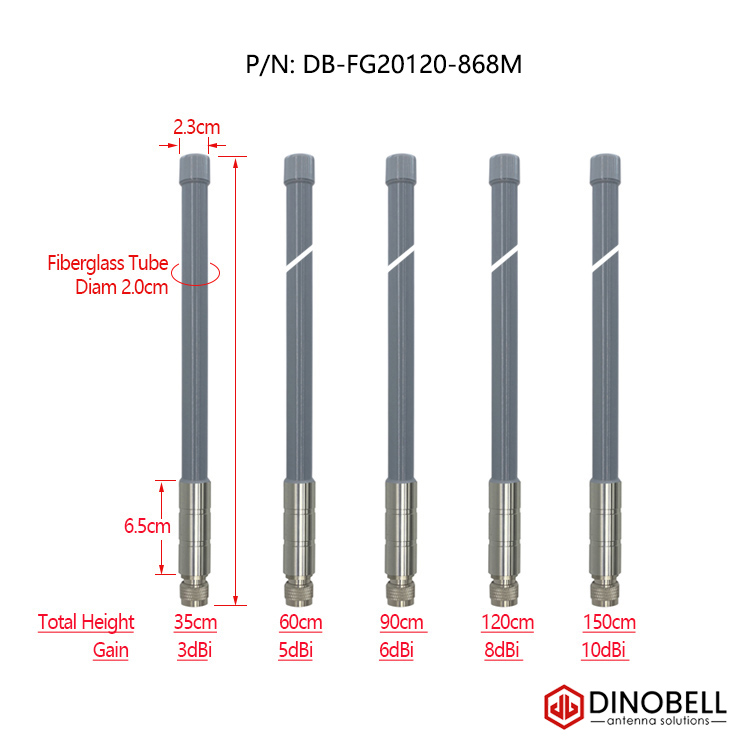

868mhz Lora Fiberglass Antenna Part Number: DB-FG20120-868M Freq Range: 858-878MHz Center Freq: 868MHz Gain:  8 dBi VSWR: <=1.5 Impedance: 50 Ohm Polarization: Vertical Radiation Pattern: Omni-Directional Max. Input Power: 50 W Antenna Dimensions: H1200mm*D23mm Mounting Method: Bracket Mounting Connector Type: N-J, N-K   optional   Part Number Antenna Height Gain DB-FG2035-868M 35cm 3dBi DB-FG2060-868M 60cm 5dBi DB-FG2090-868M 90cm 6dBi DB-FG20120-868M 120cm …
