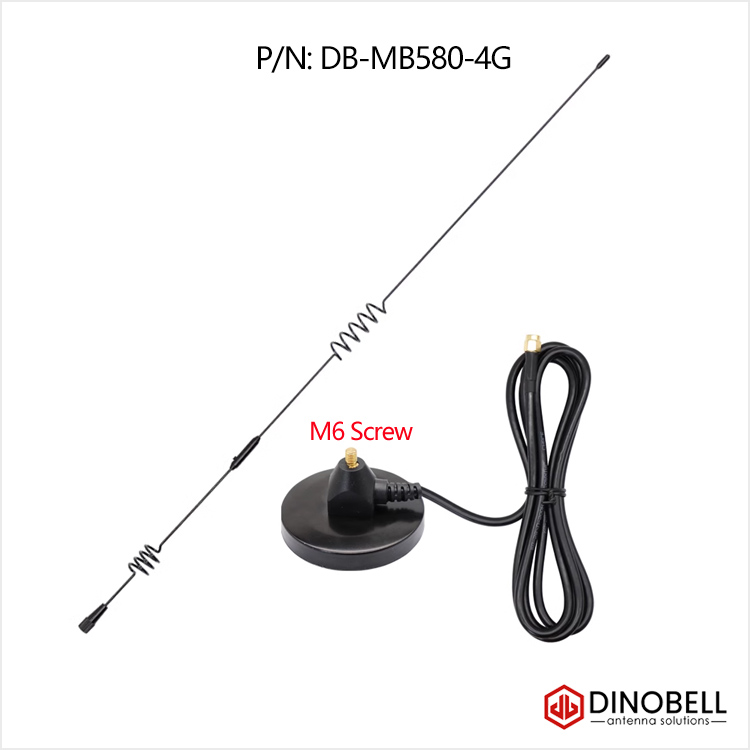

4G Magnet Mount Antenna High Gain DB-MB580-4G

» 4G LTE Antenna » 4G Magnet Mount Antenna High Gain DB-MB580-4G
4G Magnet Mount Antenna High Gain DB-MB580-4G
  • 4G Magnet Mount Antenna High Gain DB-MB580-4G
  • 4G Magnet Mount Antenna High Gain DB-MB580-4G

    CATEGORY AND TAGS:
    4G LTE Antenna, Magnetic Mount Antenna

    Type: 4G Antenna, LTE Antenna, Magnet Mount Antenna

    Part Number: DB-MB580-4G

    Freq Range: 700-960/1710-2700MHz

    Gain: 7-9dBi

    Antenna Height: 580mm

    Magnetic base : Diam 62mm

    enquiry
    • Specifications

    Type: 4G Antenna, High Gain Antenna,  Magnet Mount Antenna



    Part Number: DB-MB580-4G
    Freq Range: 700-960/1710-2700MHz
    Center Freq:
    Gain: 7-9dBi
    VSWR: <=2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 50 W
    Antenna Height: 580mm
    Base Diameter: 62mm
    Mounting Method: Magnetic
    Coaxial Cable Type: RG58
    Cable Length :  1 meter,  3 meter, 5 meter, 10 meter, 30 meter  optional
    Connector Type: SMA-male, RP-SMA-male, MCX  ,MMCX , N,  M, F   optional



    Magnetic mounts for antennas have a strong magnet that holds your antenna on a surface, mostly used on cars, trucks, and SUVs. With magnetic mounts, drilling into your surface is not necessary making this a less permanent solution. Installing these magnetic mounts is an easy process but you should learn some tips before you start to help installation go as effortless as possible.

    The best place to install your magnetic mount antenna is the center of your roof. This is for the best coverage and signal. Mounting on your trunk is okay but install the mount vertically. Know that this may affect the performance.
    Once your mount is in place, DO NOT SLIDE the mount. This can scratch the surface.
    Mounts can not be used on vinyl roofs. This is to avoid redaction in holding power. This can also cause some loss in electrical capacitance which can interfere with the operation of the antenna at some frequencies.

    Don’t mount your magnet mount antenna too close to another antenna (preferably 12 inches apart) or window or sunroof (preferably 6 inches away), this may cause interference and feedback.
