Type: Mimo antenna, screw mounting antenna,Combination antenna

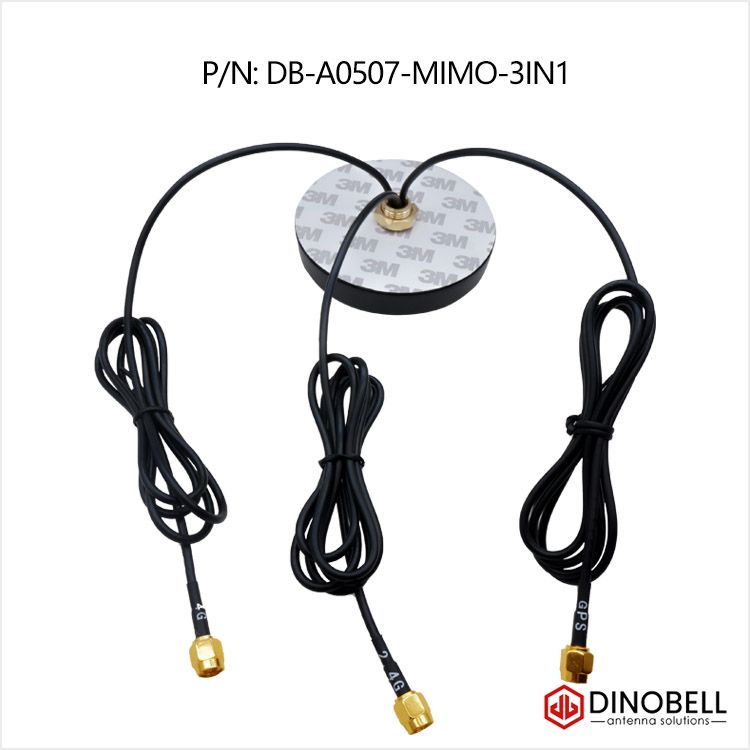

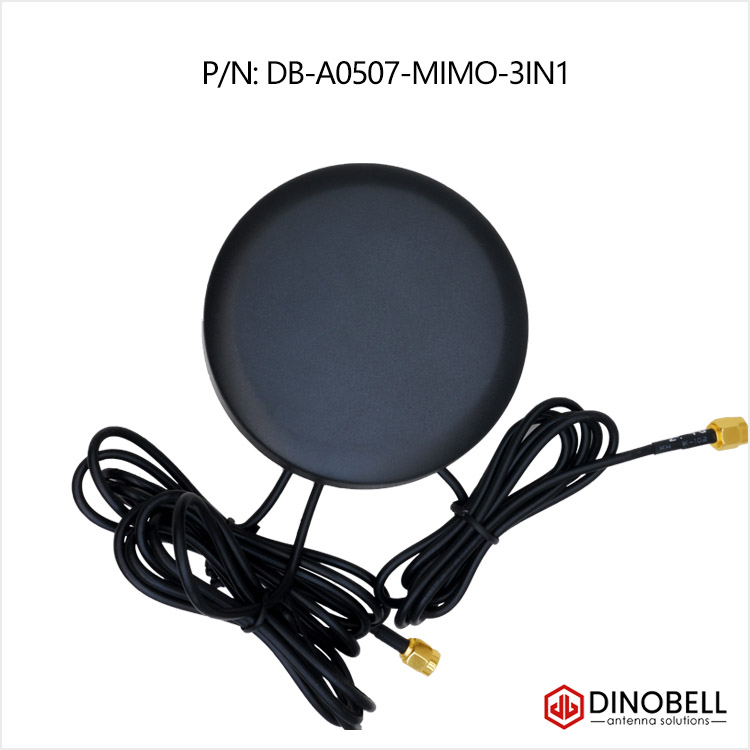

Part Number: DB-A0507-MIMO-3in1
Freq Range:
4G: 700-960/1710-2700MHz
WiFi: 2400-2500MHz
GPS: L1 1575.42MHz
Gain:
4G/WiFi: 3-5dBi
GPS: 28 dBi @ 3.0V
Mounting Method: M12 Screw
Antenna Sizes: 80mm(Diam)*35mm(Height)
Application: mimo antenna, 3in1 antenna, GPS antenna
enquiryType: Mimo antenna, Combination antenna 3in1, Outdoor 4G Antenna, WiFi Antenna, GPS Antenna
| Part Number: | DB-A0507-MIMO-3in1 |
| Freq Range: | 4G: 700-960/1710-2700MHz
WiFi: 2400-2500MHz GPS: L1 1575.42MHz |
| Gain: | 4G/WiFi: 3-5dBi
GPS: 28 dBi @ 3.0V |
| VSWR: | 4G/WiFi: <2.0:1
GPS: < 1.5:1 |
| Impedance: | 50 Ohm |
| Polarization: | 4G/WiFi: Linear
GPS: RHCP |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 20 W |
| Antenna Sizes: | 80mm(Diam)*25mm(Height) |
| Mounting Method: | Screw Mounting -M12 |
| Coaxial Cable Type: | RG178/RG174/RG316 |
| Cable Length : | 15cm/30cm/50cm/1meter/… |
| Connector Type: | IPEX /SMA/SMB/MCX/… |
