2.4GHz Antenna WiFi SMA DB-R195-2.4G

» Products » 2.4GHz Antenna WiFi SMA DB-R195-2.4G

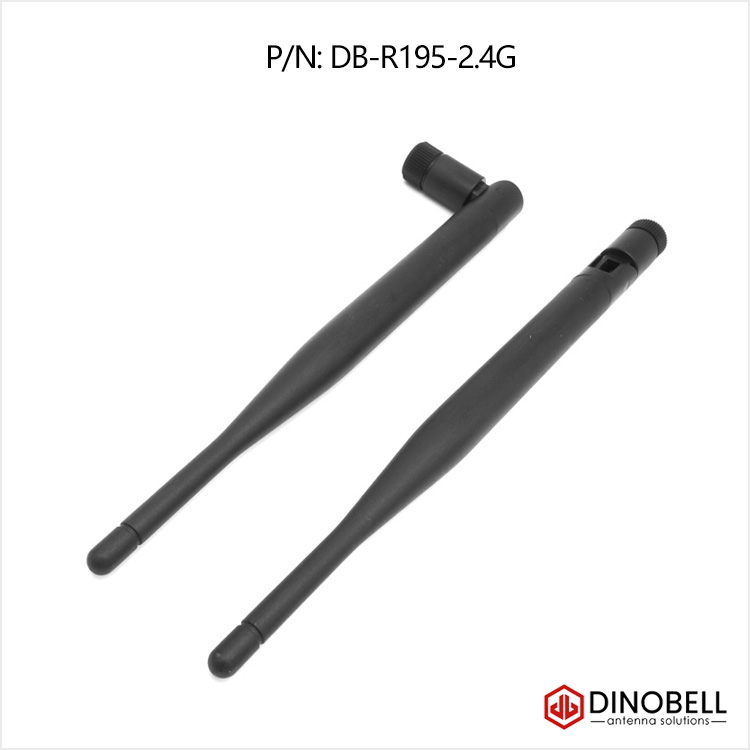

2.4GHz Antenna WiFi SMA DB-R195-2.4G
  • 2.4GHz Antenna WiFi SMA DB-R195-2.4G
  • 2.4GHz Antenna WiFi SMA DB-R195-2.4G

    CATEGORY AND TAGS:
    Products, Rubber Antenna, WiFi Antenna

    Type: 2.4ghz Antenna, WiFi Antenna

    Part Number: DB-R195-2.4G

    Freq Range: 2400-2500MHz

    Gain: 5dBi

    Mounting Method: SMA Terminal

    Antenna Sizes: H195mm*D13mm

    Application: 2.4GHz antenna,  WiFi, Bluetooth, Zigbee

    enquiry
    • Specifications

    Type:  2.4GHz Antenna, WiFi Antenna, Bluetooth Antenna, SMA Antenna



    Part Number: DB-R195-2.4G
    Freq Range: 2400-2500MHz
    Center Freq: 2450MHz
    Gain: 5 dBi
    VSWR: <2.0
    Impedance: 50 Ohm
    Polarization: Vertical
    Radiation Pattern: Omni-Directional
    Max. Input Power: 10 W
    Antenna Dimensions: H195mm*D13mm
    Mounting Method: SMA Terminal Mount
    Connector Type: SMA-male, RP-SMA-male   optional
